MIL-STD-883E Method3015返回 Back



Test or certification item 测试或认证名称:  MIL-STD-883E Method 3015美国军标ESD人体模型测试方法 human body model



Test or certification info 测试和认证相关内容:

人体放电模式（Human Body Model）  MIL-STD-883 ESD GENERATORS

The MIL-STD-883 ESD generator requires a discharge resistor of 1500 ohms (±1%) and an energy storage capacitor of 100 pf (±10%), and shall be capable of generating a pulse of 15,000 volts, in both positive and negative polarities. The ESD generator shall also have a standard air discharge tip. The ESD generator shall be calibrated to produce a positive and negative 15,000 volt (+10%, -0%) peak output pulse. The generator setting required to produce this output shall be recorded.

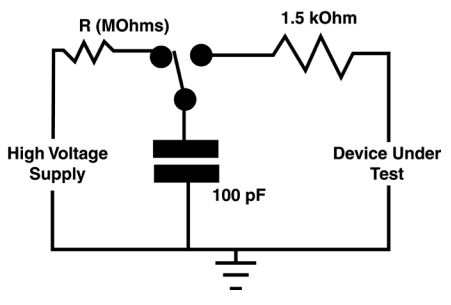

Human Body Model HBM ESD Circuit Model

 Responsive image


Norm refer 涉及法规: MIL-STD-883E



Refer products 涉及产品:  集成电路板


Lead time 周期:  常规服务 regular service 7 工作日 working days （ URGENT service, to be confirm, 加急服务待定 ）

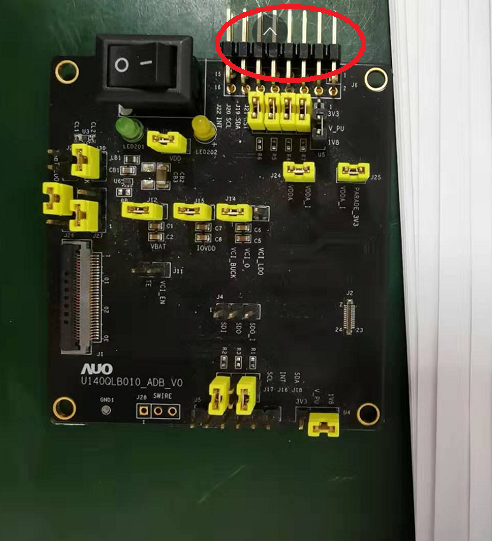

Sample size 送样规格:  将样品插入如附件中的板子上的，图中圈出的即是引出来的脚


Sample report 样本报告：



Photo for reference 涉及图片:
Responsive image
