ISTA-2B 国际安全运输协会 2B测试

-

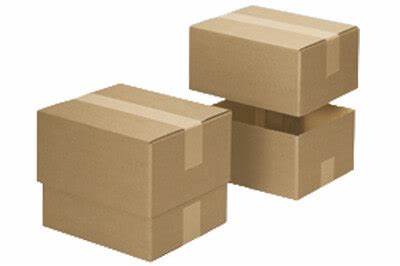

1 carton with packaged product
TRANSPORTATION TEST (ISTA 2B)

As per ISTA integrity test procedure 2B: 2011, the performance and integrity of the packaged product was evaluated.

Number of sample tested: One (1) carton

1. Shipping mark:     Nil / (See enclosed picture          )

2. Description of package:

External container size (inch)
:
Length _________ x width _____________ x depth _________
Gross weight of packaged-product (lbs)
:
Box style
:
Regular slotted container (RSC) /
Full overlap slotted container (FOL) /
Full telescope design style box (FTD) /
Center special slotted container (CSSC) /
Overlap slotted container (OSC) /
Center special overlap slotted container (CSO) /
Center special full overlap slotted container (SFF) /
Double cover box (DC)
Form
:
Single / double / triple wall corrugated board
Box maker"s certificate
:
No / marked with ________________ lbs/sq.inch.
Joint
:
Glued joint / taped joint /Single/double/diagonal/Vertical/horizontal/stitched joint
Closed with
:
Reinforced tape or pressure-sensitive tape / adhesive / paper sealing tape / metal staples / wide crown staples / ____fixation straps)
Style
:
Top / End opening.
(See enclosed picture 1)

3. Test procedure

(A) Anticipated conditioning: [Internal use: The condition for test must confirm with CSO]

(i) Preconditioning: Laboratory ambient temperature and humidity for six (6) hours at :  _______°C; _______% RH.

(ii) Extreme Cold, Uncontrolled RH (72) hours at: -29°C/

Cold, Humid (72) hours at: 5°C, 85% RH/

Controlled Conditions (72) hours at: 23°C, 50% RH/

Hot, Humid (72) hours at: 38°C, 85% RH/

Hot, Humid then Extreme Heat, Moderate RH: (72) hours at: 38°C, 85% RH and then for six (6) hours at 60°C, 30% RH/

Elevated Temperature, Uncontrolled RH (72) hours at: 50°C/

Extreme Heat, Dry (72) hours at: 60°C,15% RH/

Severe Cold, Uncontrolled RH  (72) hours at: -18°C

User defined  ____________________________________________.

Result:
No visible change was found on the contents of the packaged product.

(B) Compression test :

Compression test system: Apply and release test force .

Test force: ______ pounds.

The packaged-product may be not warehoused in a stacked.

Compensating factor F=

Total number of packaged-products in a stack S=        (as claimed by applicant /as recommended by standard.)

[Internal use: The no.(S)   was not warehoused  in a stack must confirm with CSO; S=      ,F=      ,Wt=         ,test

force=[Wtx(S-1)xFx1.4]   ( F=5 if the packaged-product may be warehoused , otherwise F=4)

Remark:  No puncture of carton box was observed.

(C) Vibration test (first part)

Mode of vibration: vertical linear.

Vibration frequency:  ________ CPM.

Duration of testing:  ________minutes and  ________ seconds.

Number of impacts: 11,800.

Remark: No puncture of carton box was observed.

(D) Impact and rotational edge drop test

(a) Not to shock the top surface

Method used:
Free fall drop
Number of drops:
4
Height of drop (inches):
6

The drop sequence and orientation were listed as below:

Drop sequence
Orientation of packaged-product
1
Face
One of the smallest vertical faces
2
Face
Opposite small vertical face
3
Face
One of the largest vertical faces
4
Face
Opposite large vertical face

Method used:
Rotational edge drop
Number of drops:
2
Height of drop (inches):
8

The sequence was listed as below:

Step
Rotational edge drop
1
Sequence
Action
1
Place the unitized load onto a flat, rigid surface such as steel or concrete.
2
Support one of the shortest face 3 edges with a timber or support 3.5 to 4.0 in (90 to 100 mm) in height and width.
3
Lift the opposite face 3 edge to 8 in (200 mm) off the surface.
4
Release the edge so that it falls freely onto the flat, rigid surface.
2
The Unit Load has a length equal to or greater than twice the width and a center of gravity above the midpoint of the height.
Repeat step 1 on the face 3 edge opposite the edge just tested in step 1 sequence 4.
3
The Unit Load does not has a length equal to or greater than twice the width and a center of gravity above the midpoint of the height.
Repeat step 1 on one of the face 3 edges radiating 90° from the edge just tested in step 1 sequence 4.

Remark: No puncture of carton box was observed.

(b) Shock the top surface

Method used:
Free fall drop
Number of drops:
6
Height of drop (inches):
6

The drop sequence and orientation were listed as below:

Drop sequence
Orientation of packaged-product
1
Face
One of the smallest vertical faces
2
Face
Opposite small vertical face
3
Face
One of the medium vertical faces
4
Face
Opposite medium vertical face
5
Face
One of the largest vertical faces
6
Face
Opposite large vertical face

(E) Vibration test (second part)

Mode of vibration:  Vertical linear.

Vibration frequency:  __________CPM.

Duration of testing:   _________minutes and  ________ seconds.

Number of impacts: 11,800.

Remark: No puncture of carton box was observed.

4. Interior packaging:

Sample for reference 参考图片:
Responsive image

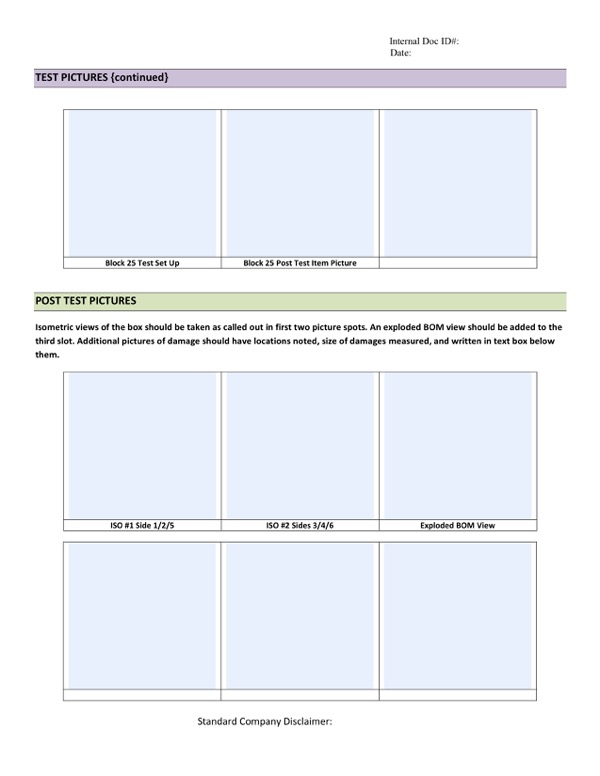

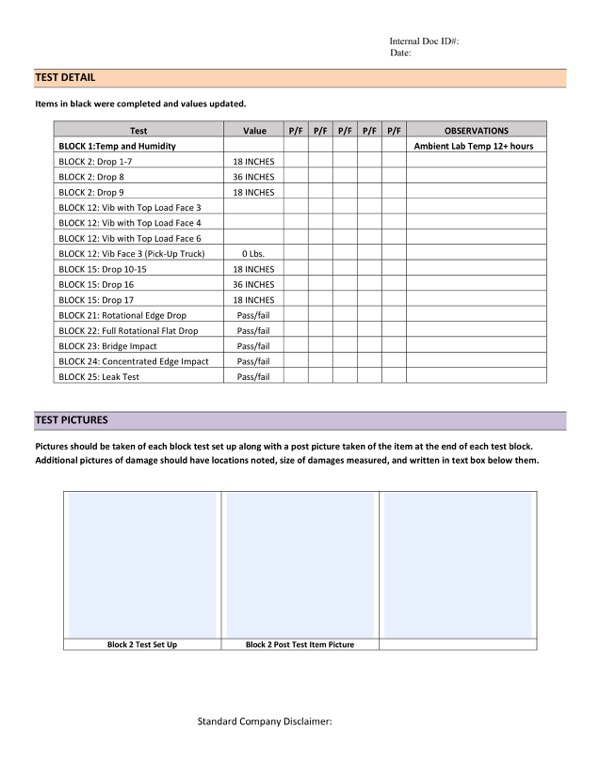

Sample Report 报告样本:
