Test item 测试名称: Camping tents 野营帐篷

Test info 测试内容:
Clause
Test Requirement
6 Requirements
6.1.1  Fabrics and their connections
6.1.1.1 Tear resistance, breaking strength, resistance to penetration by water, weatherability
6.1.1.2 Dimensional stability
6.1.1.3  Flammability
6.1.2  Ground fastening
6.1.3 Protective measures
6.1.4  Ventilation
6.1.5  Tent exits
6.1.6  Insect protection
6.1.7  Resistance to penetration by rain
6.2 Requirements for components
6.2.1 Frame
6.2.2  Zip fasteners
6.2.3  Guying system
6.2.4  Tent and pole bags
7 Tent accessories
9 Advice to occupants
10 Information supplied by the manufacturer
11 Marking

Annex 1: Corrosion resistance  盐雾测试
ISO 9227 NSS test for 36h
ISO 2081 test for 192h

Annex 2: Fabric & material test
Test property Fabric/material usage Sample Qty.
Tear resistance according to ISO 13937‑2 outer tent (Tent and pole bags), coated/uncoated 0.5m*full width
inner tent 0.5m*full width
groundsheet 0.5m*full width
Breaking strength according to ISO 13934‑2 outer tent (Tent and pole bags),coated/uncoated 0.5m*full width
inner tent 0.5m*full width
groundsheet 0.5m*full width
plastic windows 0.5m*full width
Resistance to penetration by water according to ISO 811 outer tent, coated 0.5m*full width
groundsheet 0.5m*full width
Weatherability according to ISO 105‑B04 outer tent (Tent and pole bags), coated/uncoated 1 pcs of A4
plastic windows 1 pcs of A4
Colour fastness according to ISO 105‑X12 outer tent (Tent and pole bags),coated/uncoated 2 pcs of A4
inner tent 2 pcs of A4
groundsheet 2 pcs of A4
plastic windows 2 pcs of A4
Resistance to puncture according to EN 388 groundsheet 0.5m*full width
Resistance to penetration by water according to ISO 4675:1990,9.1. cold 4 h Plastic windows
Test temperature shall be -5 °C (performance level 2) and -10 °C (performance level 3).
0.5m*full width
Flammability (ISO 6941) Outer tent fabric / inner tent fabric 2m* full width
Flammability (ISO 6925) Groundsheet fabric 20 pcs of 23cmX23cm
Dimensional stability (ISO 7771) Outer tent fabric / inner tent fabric  1pcs of 70cm*70cm

Lead time 测试周期:  常规 regular service 18 working days

Sample size 送样规格: 3pcs

Others 其他信息:

1. Tent categories 帐篷分类:
Cat. A (lightweight): Tents having a total weight of 2,5 kg per sleeping berth.
Cat. B: Tents having a total weight of > 2,5 kg per sleeping berth.

2. Tent performance level 帐篷测试等级:
Level 1: Tent designed for infrequent and short-term use. Although rain resistant, these tents should be used mainly in fair weather (EXAMPLE Occasional summer weekend camping).
Level 2: Tent designed for use in mainly moderate weather conditions (EXAMPLE Poor (wet and windy) weather conditions; not intended for extreme or mountain conditions).
Level 3: Tent designed for use in all weather conditions (EXAMPLE Mountaineering, expeditions, snow-loading or extended residential use).

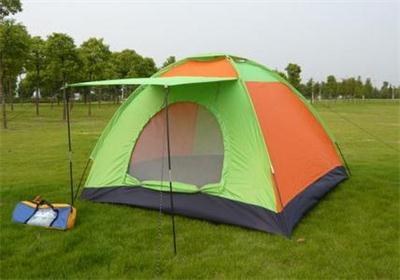

Picture for Reference 参考图片:
Responsive image

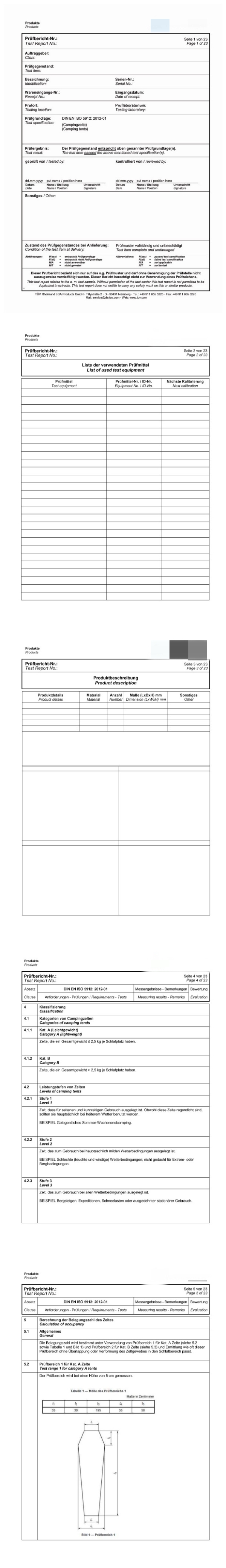

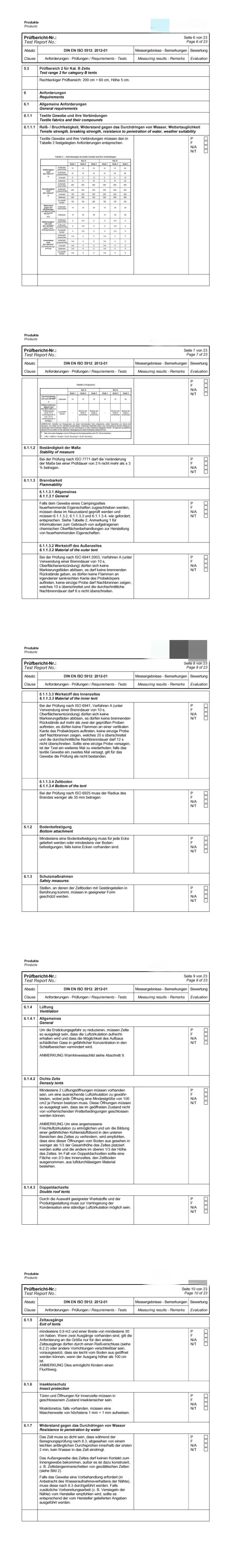

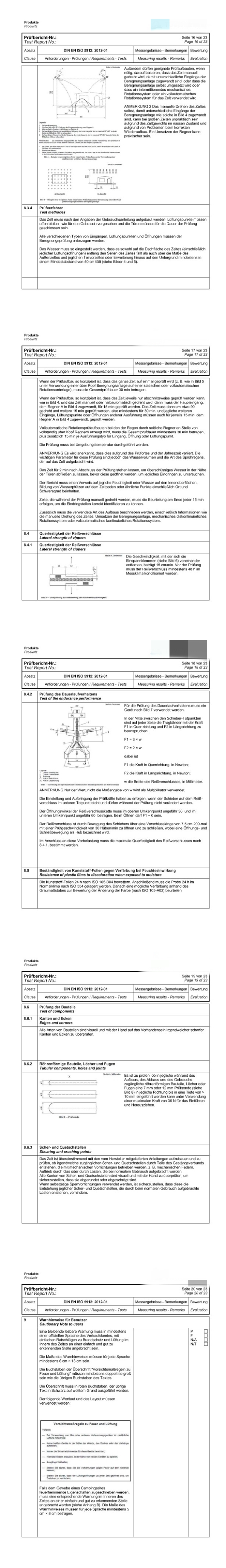

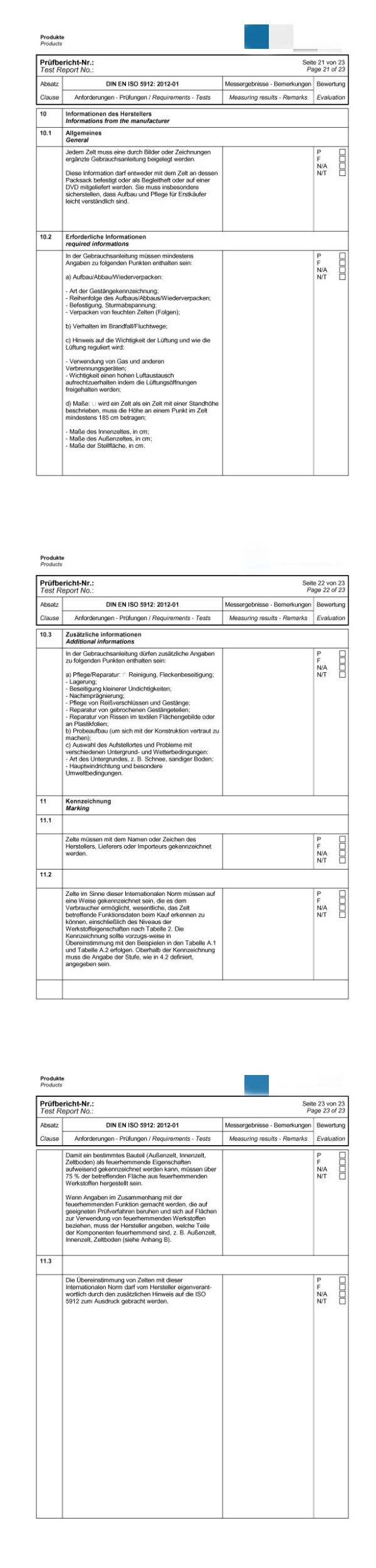

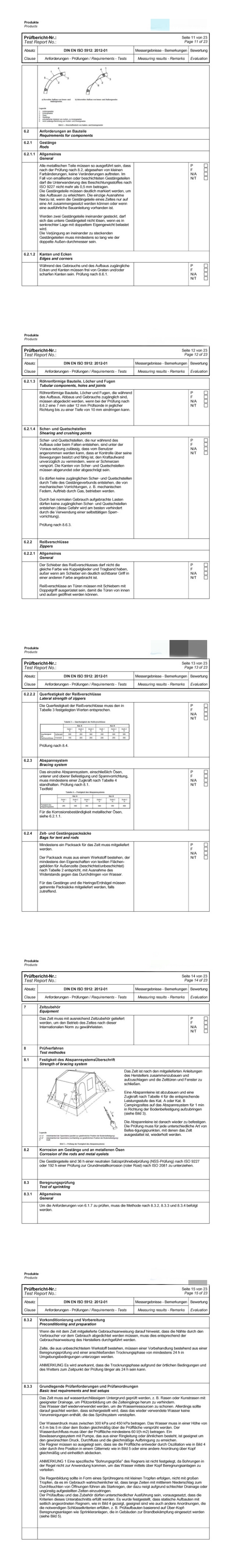

Sample report 样本报告:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive image
