Test or certification item 测试或认证名称: 抗熔融金属滴(溅沫)冲击性能测试
Protective Clothing - Determination of Behaviour of Materials on Impact of Small Splashes of Molten Metal

Test or certification info 测试和认证相关内容:

测试条件
Touch screen control panel.
Pre-setting metal welding rod feeding speed and gas flow control.
Automatic temperature data recording.
Equipped with sheild cover to provide safe test condition.
触摸屏控制面板。
预先设定金属焊条进给速度和气体流量控制。
自动温度数据记录。
配备防护罩,提供安全的测试条件。


This trial measures the number of molten metal drops needed to increase the temperature of the calorimeter behind the sample, 40°K.

The trial will be performed on 10 samples measuring 120 mm x 20 mm.

The composition of the test rods is very important, as it affects the ability to reproduce the results. The composition must abide by standard ISO 636, and linear density must be (0.5 + 0.2) g/cm.

One end of a steel rod is smelted on the flame of an oxyacetylene blowtorch with a diameter of 1.2 mm. The rod will be pushed forward with a variable-speed motor and a pulley system. Prior to performing the test, the speed of the motor must be adjusted so that the steel rod can be fed into it at a speed of 10 g/min. Once all parameters have been adjusted, the test consisting of projecting molten metal drops on the same area of the sample will be performed.


该试验测量了将样品后面的量热计温度升高40°K所需的熔融金属滴数。
试验将在10个尺寸为120 mm x 20 mm的样品上进行。
测试棒的成分非常重要,因为它会影响再现结果的能力。成分必须符合ISO 636标准,线密度必须为(0.5+0.2)g/cm。
钢条的一端在直径为1.2 mm的氧乙炔喷灯的火焰上熔炼。连杆将通过变速电机和皮带轮系统向前推动。在进行试验之前,必须调整电机的速度,以便以10 g/min的速度将钢条送入电机。调整完所有参数后,将进行试验,包括在样品的同一区域投射熔融金属滴。

Norm refer 涉及法规: ISO 11612, EN 348, ISO 9150, EN ISO 11611, EN ISO 20349

Refer products 涉及产品:  防护服,阻燃服,消防服

Lead time 周期:  常规服务 regular service 9-12 工作日 working days ( URGENT service, to be confirm, 加急服务待定 )

Sample size 送样规格: 120mm x 20mm x 12pcs per color per material 每种颜色每种材料

Others 其他信息:

小液滴熔融金属电阻测试仪(也称为熔融金属飞溅测试仪)是一种专业设计,用于评估EN ISO 11611、EN ISO 20349防护服所用材料在受到根据EN 348和ISO 9150设计的小液态金属飞溅物撞击时的性能。它用于确定PPE(个人防护装备)对佩戴者的防护性能,以防熔融金属在高热负荷下飞溅。试验机可以为制造商或研究人员提供可靠的数据,以确保防护服的防护功能能够抵抗热传递,并有助于避免在使用条件下可能导致人身伤害的危险。

气体:氧气和乙炔
气压:可调
焊条进给速度:可调
焊接燃烧器直径:(1.2±0.1)mm
温度测量:温度传感器
装载重量:175g±0.5g
电源:220V 50Hz
尺寸:700mm×500mm×850mm/27.56英寸×19.69英寸×33.46英寸
净重:45公斤/99.2磅

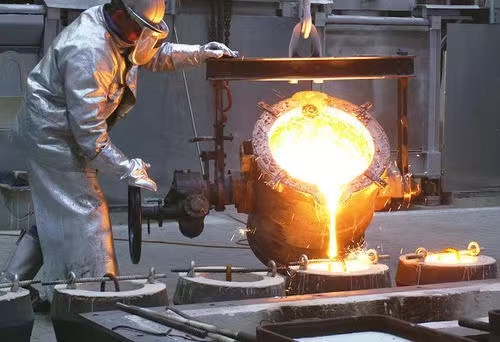

Photo for reference 涉及图片:
