GB/T 18380.35返回 Back
Test item 测试名称：
Tests on electric and optical fibre cables under fire conditions - Part 35:Test for vertical flame spread of vertically-mounted bunched wires or cables - Category C
 电缆和光缆火焰条件下的燃烧试验 第35部分 垂直安装的成束电线电缆火焰垂直蔓延试验 C类
 Test info 测试内容：
Test Clause Requirement
　
conditioning conditioned at a temperature of (20 ± 10) °C for at least 16 h before commencing the test.
Sample Required:
每根长度不少于3.5m，所需根数按照下式计算。总样品数量=n×3.5(m) 。
n=1000V/(S－Sm);  n为试件根数;  S为电缆截面积，mm2;  Sm为导体截面积，mm2;  A类V取7.0; B类V取3.5;   C类V取1.5;   D类V取0.5    (请按上式计算)
　
Turnaround time: normal (9 working days)
所需时间: 标准(9 个工作天)

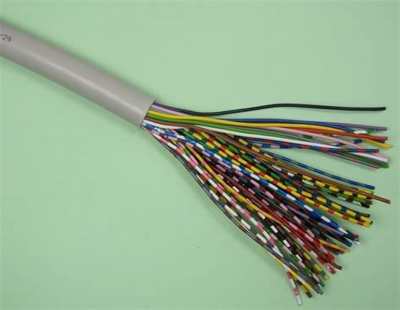

Sample for reference 参考图片:

Responsive image

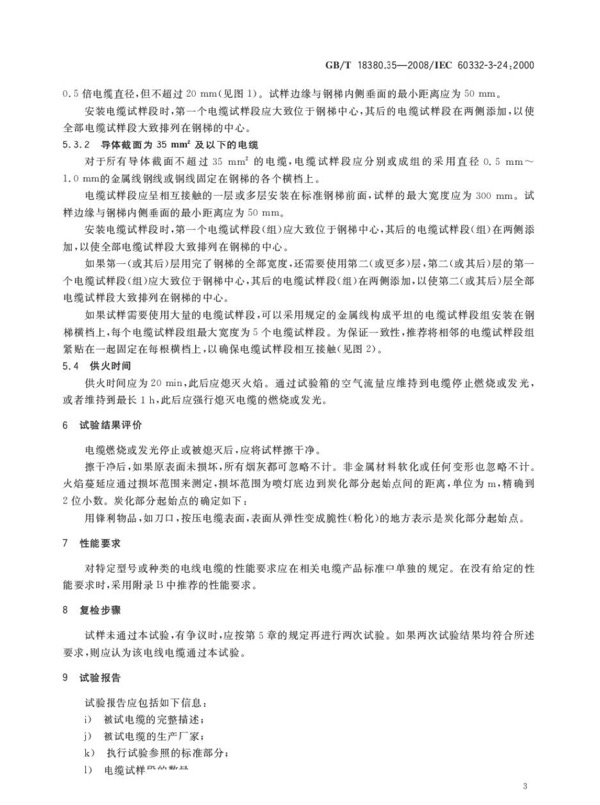

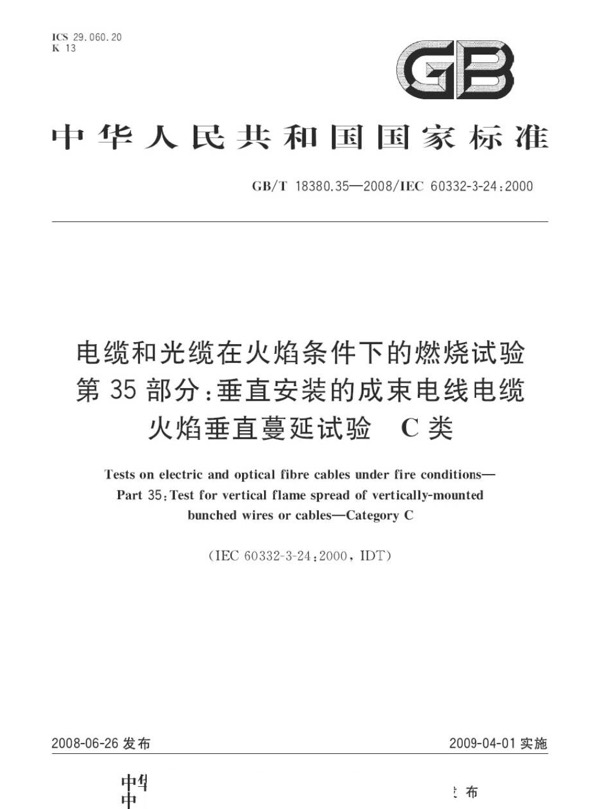

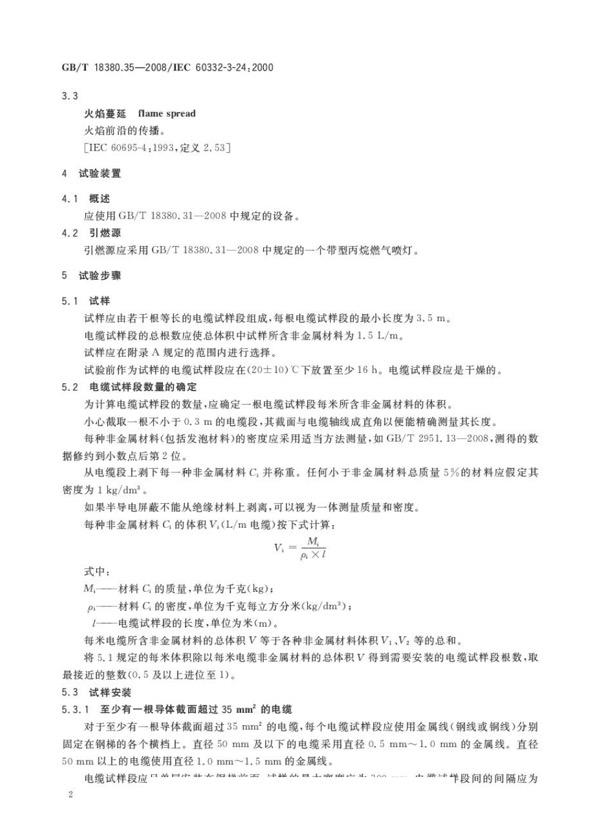

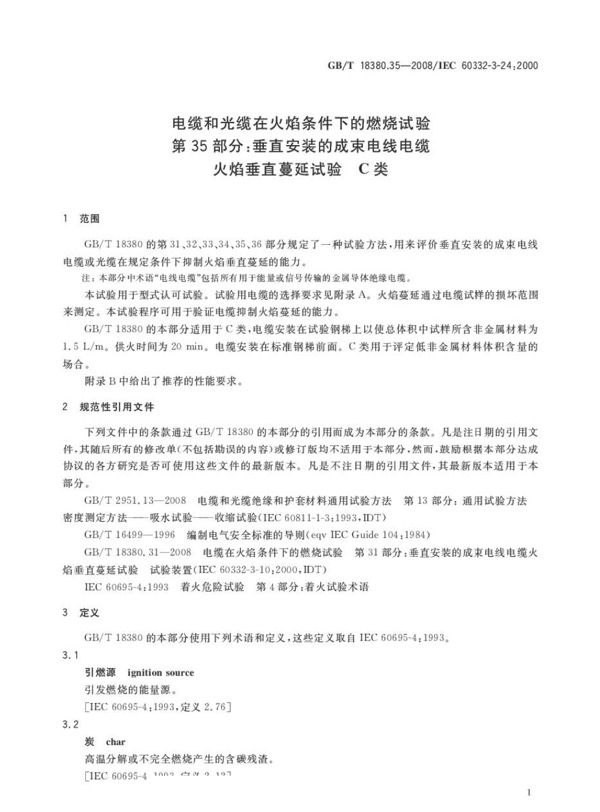

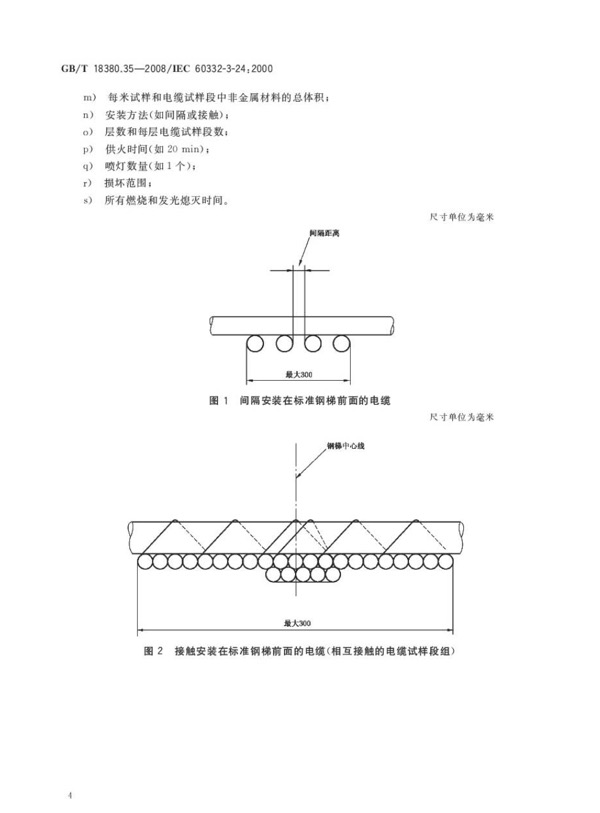

Sample Report 报告样本：
Responsive imageResponsive imageResponsive imageResponsive imageResponsive image
