FTMS 101C 穿刺测试返回 Back
Test or certification item 测试或认证名称: FTMS 101C / MIL STD 3010C Method 2065

performs puncture test 穿刺测试

This puncture test measures the load required to puncture flexible sheet materials. It is used to simulate everyday puncture failure or as a quality control method on sheeting and film.

Test Procedure:
The puncture fixture is attached to the compression plate of an Instron universal testing machine. A 50 x 50 mm (2" x 2") square test sample is clamped into the test future. The puncture tool is pushed through the film at a relatively slow speed. The load at rupture is recorded.

Lead time 周期:  常规服务 regular service 25 工作日 working days ( URGENT service, to be confirm, 加急服务待定 )
Sample size 送样规格:   (10) Specimens are tested per the method, (5) on each side.
Please mark on material inside and outside and supply enough material for (12) specimens at 3 inch x 3 inch.

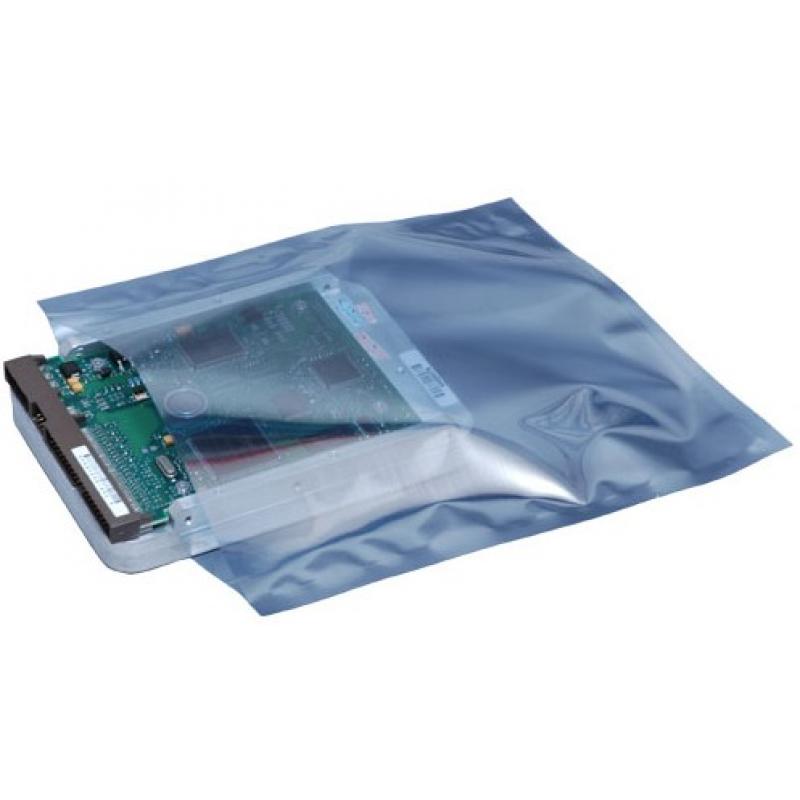

Photo for reference 涉及图片:

Responsive image
Sample report 样本报告:
Responsive imageResponsive image

Responsive imageResponsive image
