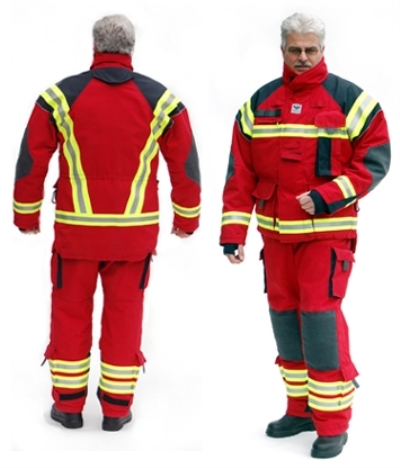

Test item 测试名称: Firefighters protective clothing 消防员防护服

Refer products 涉及产品:安全服饰, 个人防护服

Test info 测试内容:
PROPERTY TEST METHOD REQUIREMENTS
6.1 Flame spread (test flame to outer fabric) EN ISO 15025, Procedure A  EN 533 Index 3
No flaming to edge
No hole formation
No flaming or molten debris
Mean afterflame 2s
Afterglow not to spread
6.1 Flame spread ( test flame to innermost lining ) EN ISO 15025 Procedure A EN 533 Index 3
No flaming to edge
No hole formation
No flaming or molten debris
Mean afterflame 2s
Afterglow not to spread
6.2 Heat transfer – Flame EN 367                                  Level 1     Level 2
HTI24                       9.0     13.0
HTI24-12   3.0 4.0
(based on lowest result)
6.3 Heat transfer– Radiation EN ISO 6942 Method B at 40kW/m²            Level 1     Level 2
RHTI24     10.0  18.0
RHTI24-12      3.0  4.0
(based on lowest result)
6.4 Residual strength EN ISO 6942 Method A at 10kW/m² Tensile strength (EN ISO 13934-1) of outer material 450N (all specimens)
6.5 Heat resistance ISO 17493 at 180°C Materials shall not  ignite or melt. Shrinkage 5%
6.6 Tensile strength (outer material) EN ISO 13934-1 450N
6.6 Tensile strength (seamed outer) EN ISO 13935-2 225N
6.7 Tear strength (outer material) EN ISO 13937-2 25N
6.8 Surface wetting EN 24920 Spray rating 4, (based on lowest result)
6.9 Dimensional change ISO 5077 Max ± 3%, (- = shrinkage)
6.10 Resistance to penetration by liquid chemicals EN ISO 6530 No penetration to innermost surface.  Repellency rate > 80%
1. 40% NaOH
2. 36% HCl
3. 30% H2SO4
4. 100% o-xylene
6.11 Resistance to water penetration
(moisture barrier)
EN 20811 Level 1 < 20kPa
Level 2 20kPa
6.11 Resistance to water penetration
       (seamed specimen)
EN 20811  Level 1 < 20kPa
Level 2 20kPa
6.12 Water vapour resistance  EN 31092 Level 1 > 30m².Pa/W
Level 2 30m².Pa/W


标准规定基本的安全要求如下:

火的蔓延

传热(火焰)

热传递(辐射)

当暴露于辐射热时物料的剩余强度.

热阻

拉力强度

撕扯强度

表面湿度

尺寸变化

流质化学物质的渗透性


Lead time 测试周期: 常规 regular service 8 weeks working days

Sample size 送样规格: 6 samples( set of clothing) and 4 m² material(with all layers)

Others 其他信息:
Responsive image

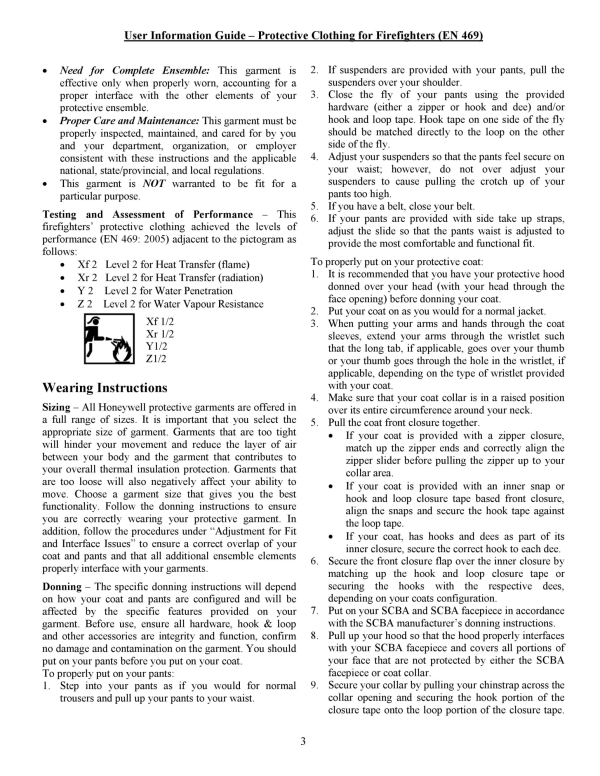

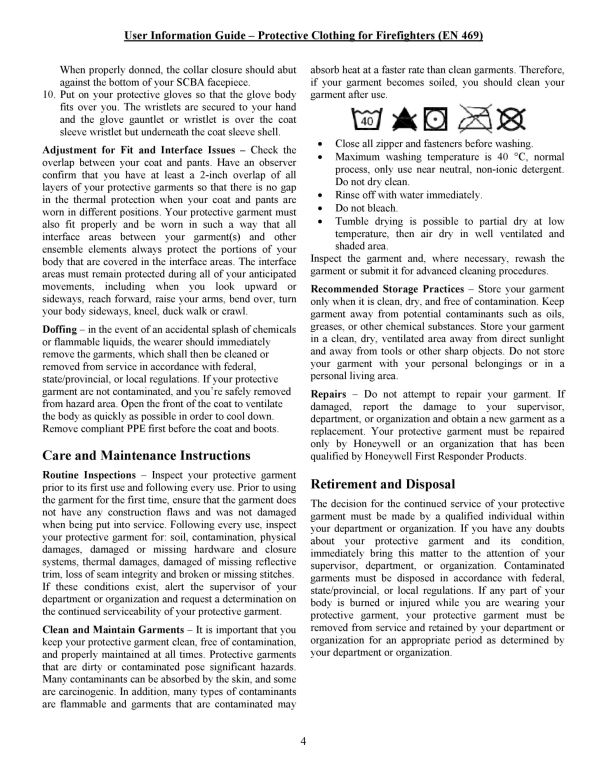

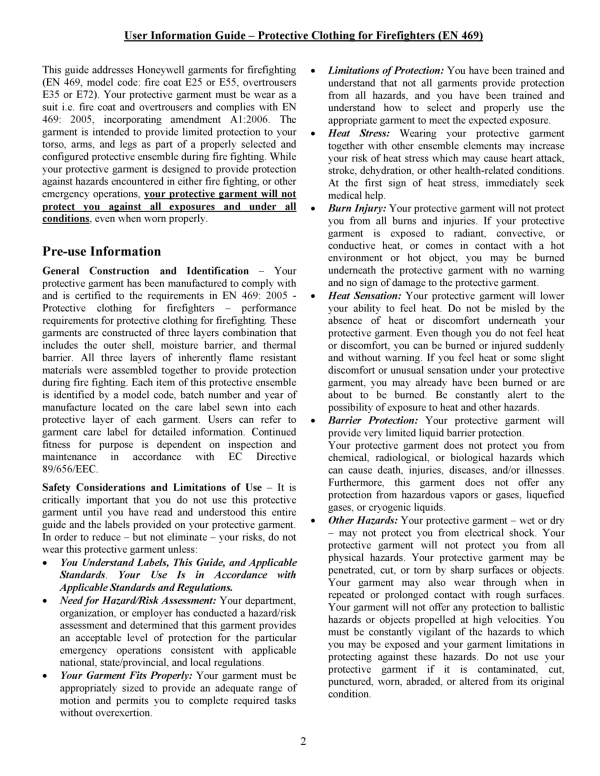

Sample Report 报告样本:
Responsive imageResponsive imageResponsive imageResponsive image
