EN 45545-2返回 Back
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R1 (IN1A;IN1B;IN1D;IN1E; IN4; IN5; IN6A; IN7; IN8;IN9B; IN11; IN12A;IN12B; IN14; F5)
R2 (IN2; IN9A;IN10)
R3 (IN3A)
R7 (IN6B; IN12C;EX1A; EX1C;EX3; EX4;EX5;EX6A; EX7;EX8; EL3C)
R17 (EX1B)
T02, ISO 5658-2
T03.01, ISO 5660-1: 50 kWm-2
T10.04, EN ISO 5659-2:50 kWm-2
T11.01, EN ISO 5659-2:50 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R4 (IN3B)
T02, ISO 5658-2
T05, EN ISO 11925-2, 30 s flame application
T11.01, EN ISO 5659-2:50 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R5 (E2A -5.3.4;F1E)
T05, EN ISO 11925-2, 30 s flame application
T03.02, ISO 5660-1: 25 kWm-2
T10.03, EN ISO 5659-2:25 kWm-2
T11.02, EN ISO 5659-2:25 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R6 (F1C;F1D)
T03.02, ISO 5660-1: 25 kWm-2
T10.03, EN ISO 5659-2:25 kWm-2
T11.02, EN ISO 5659-2:25 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R8 (EX2; EX6B)
R10 (IN1C; IN15)
T04, EN ISO 9239-1
T03.01, ISO 5660-1: 50 kWm-2
T10.04, EN ISO 5659-2:50 kWm-2
T11.01, EN ISO 5659-2:50 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R9 (EX9; EX10;EX11;M1)
T03.02, ISO 5660-1: 25 kWm-2
T10.03, EN ISO 5659-2:25 kWm-2
T11.02, EN ISO 5659-2:25 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R11 (EL3A)
R12 (EL3B)
T02, ISO 5658-2
T03.01, ISO 5660-1: 50 kWm-2
T10.01/02, EN ISO 5659-2:50 kWm-2
T11.01, EN ISO 5659-2:50 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R13 (E5)
T14, EN 13501-1,A1
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R14 (EL4)
T08, ISO 2592, ISO 2719
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R15 (EL1A)
R16 (EL1B)
T09.1, EN 60332-1-2
T09.2, EN 50266-2-4
T09.3, EN 50305, 9.1.1
T09.4, EN 50305, 9.1.2
T13, EN 61034-2
T15, EN 50305
Note: All materials subject to this test shall be halogen-free, as defined in subclause 3.3 of EN 50306-1, maximum evolution of HCl, minimum pH & maximum conductivity, and maximum fluorine content.
注:材料在执行EN 50305 的毒性指数前,需要确保是无卤的,包含最大酸性气体释放、最小PH和最大电导率和最大氟含量。
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R18 (F1)
T06, ISO 9705
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R19 (F2)
T03.02, ISO 5660-1, 25 kWm-2
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R20 (F4)
T07, EN ISO 12952-2
T03.02, ISO 5660-1: 25 kWm-2
T10.03, EN ISO 5659-2:25 kWm-2
T11.02, EN ISO 5659-2:25 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R21 (F1A;F1B;F1E;F3)
T03.02, ISO 5660-1: 25 kWm-2
T10.03, EN ISO 5659-2:25 kWm-2
T11.02, EN ISO 5659-2:25 kWm-2
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R22 (IN16; EL2;EL6A; EL7A;M2)
R23 (EX12; EL2; EL5 EL6B; EL7B; M3)
T01, EN ISO 4589-2: OI
T10.03, EN ISO 5659-2:25 kWm-2
T12, NF X 70-100-1 and -2, 600 °C
TOTAL:
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R24 (E6; E7B; E2B, 5.3.4; E8B, 4.4.1)
T01, EN ISO 4589-2: OI
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R25(E2B, 4.3.4; 4.4.2 and 4.4.3)
T16,EN 60695-2-11
EN 45545-2, Fire protection on railway vehicles Part 2: Requirements for fire behaviour of materials and component
铁路车辆防火
R26 (EL10)
T17, EN 60695-11-10



Photo for reference 参考图片:
Responsive image

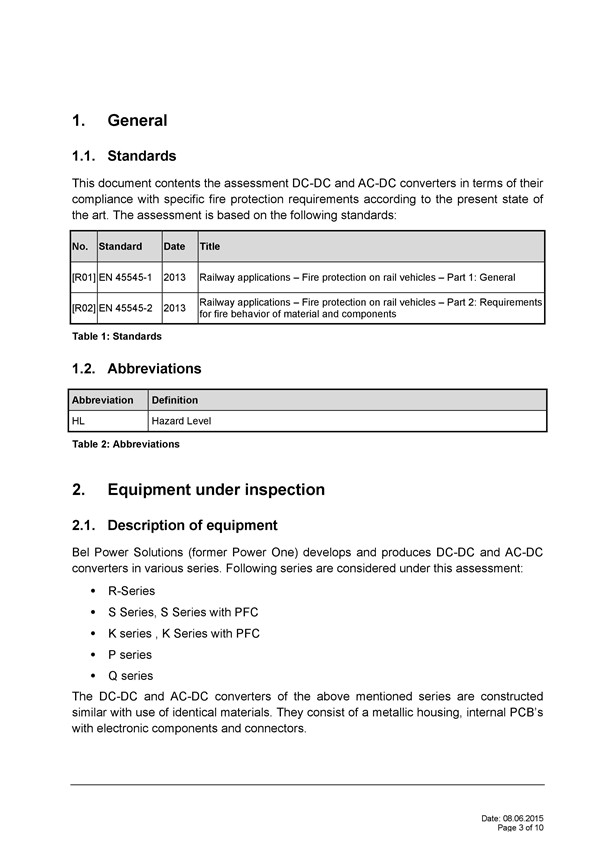

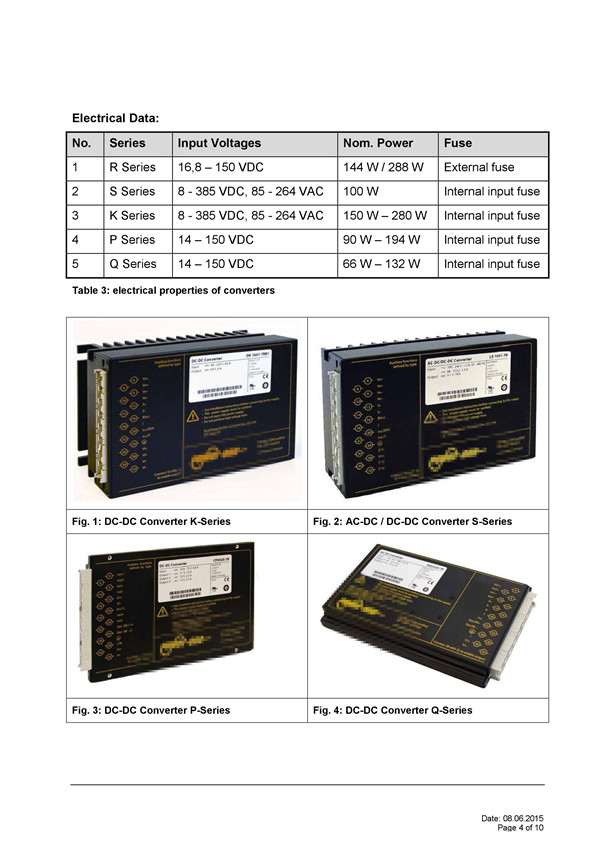

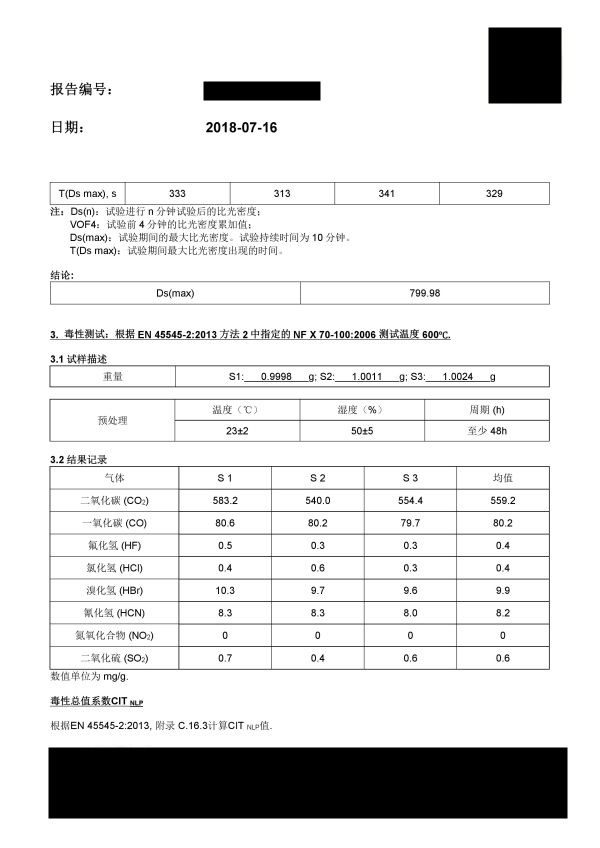

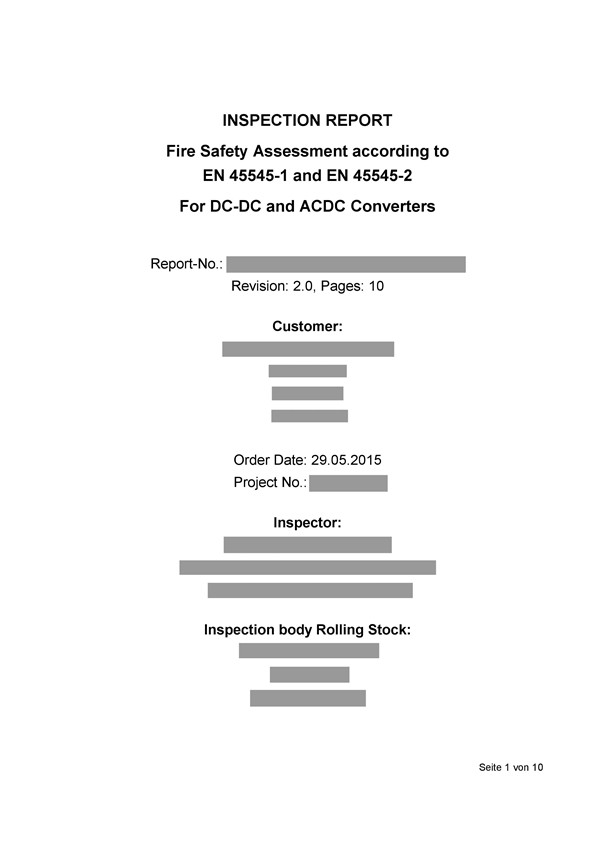

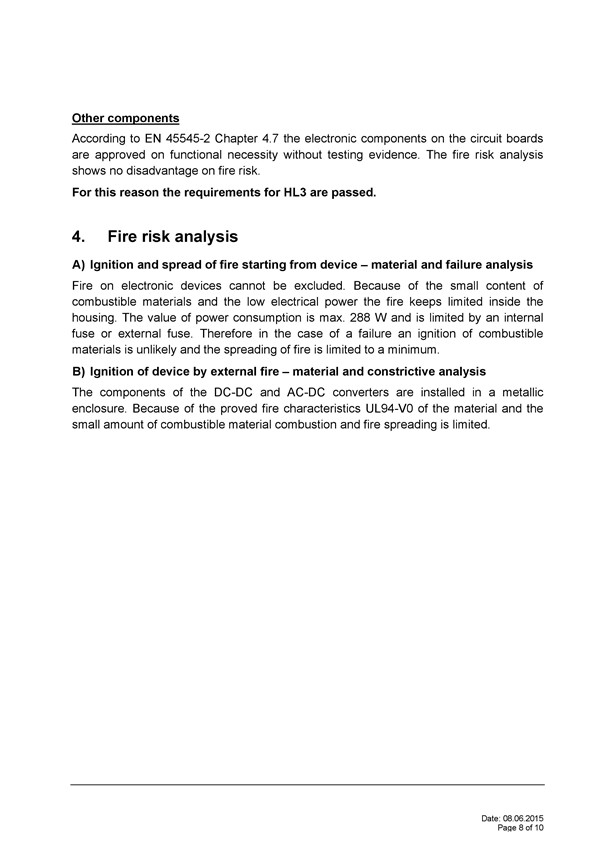

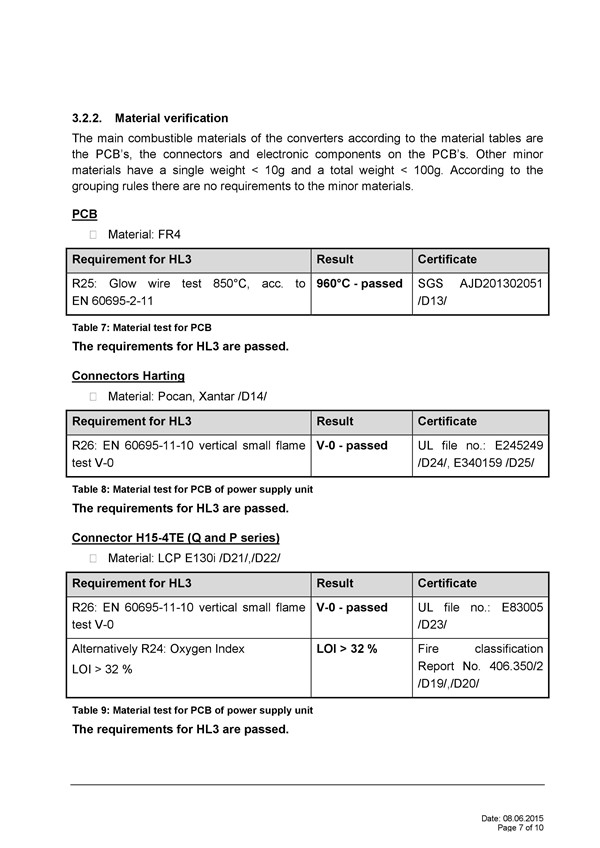

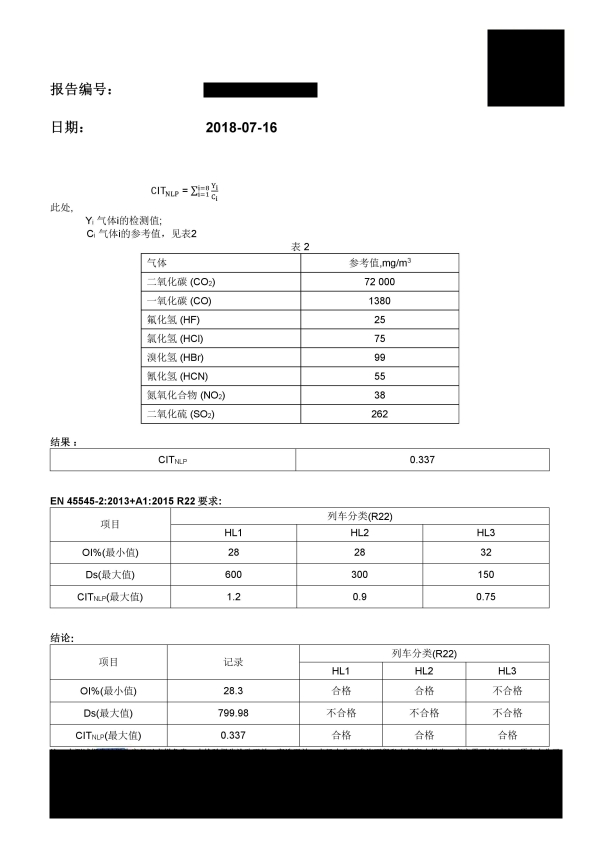

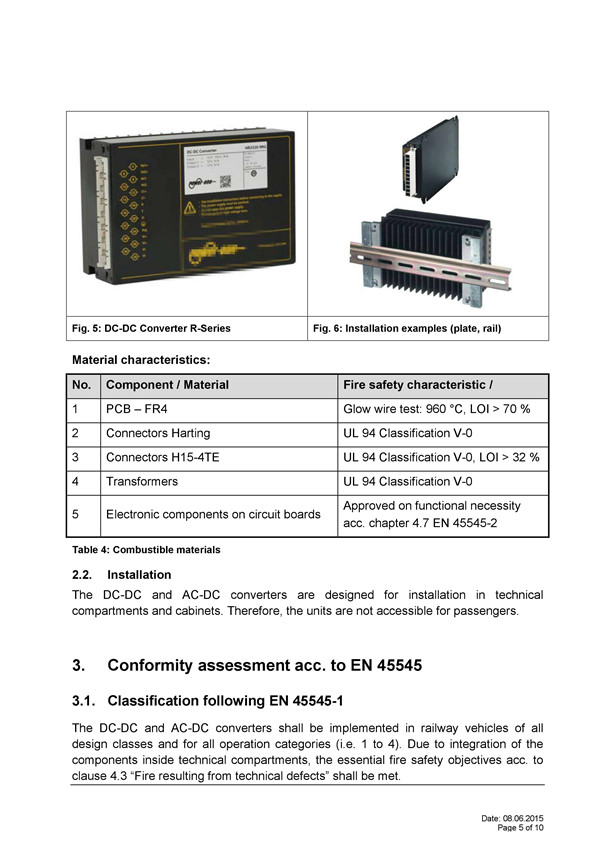

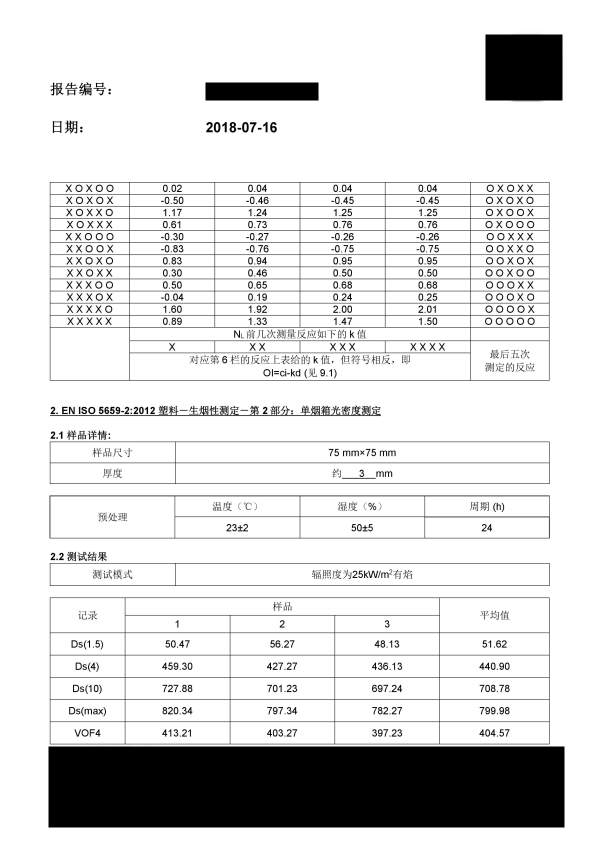

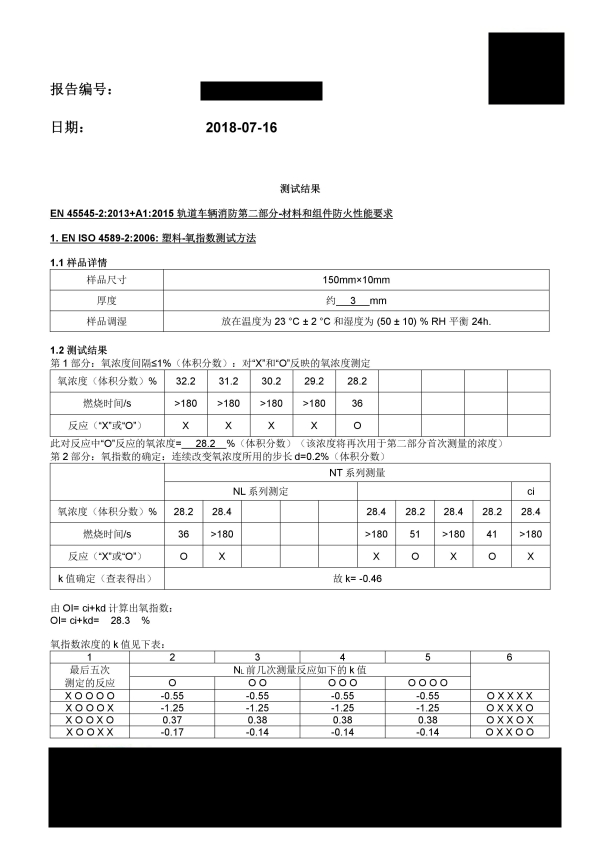

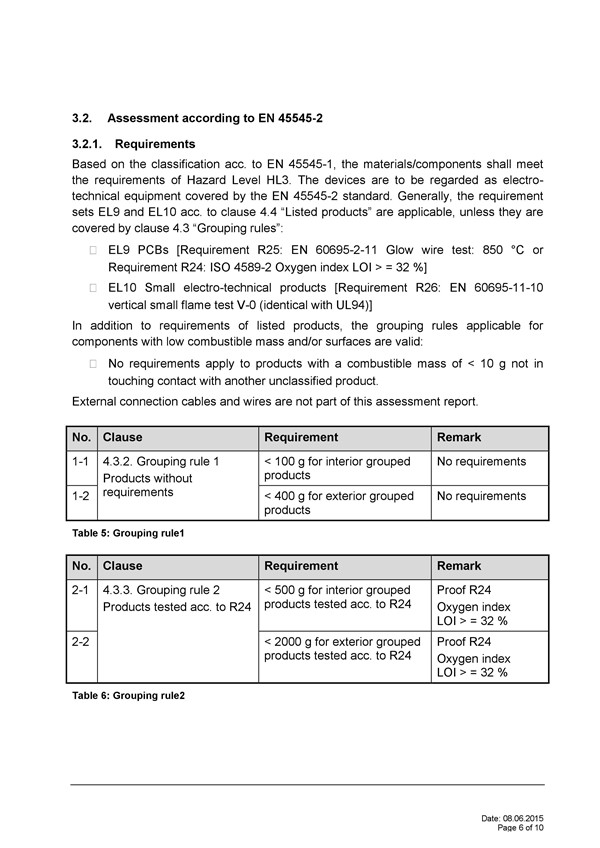

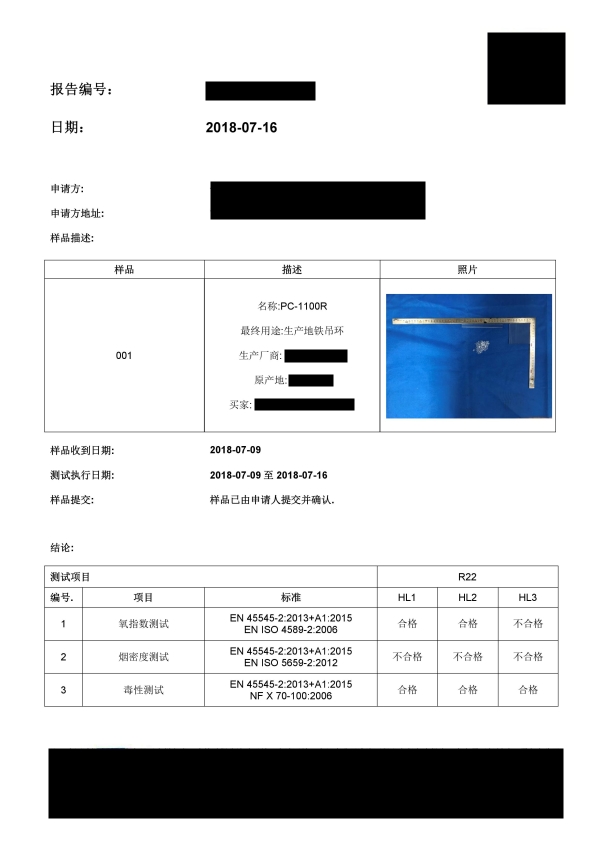

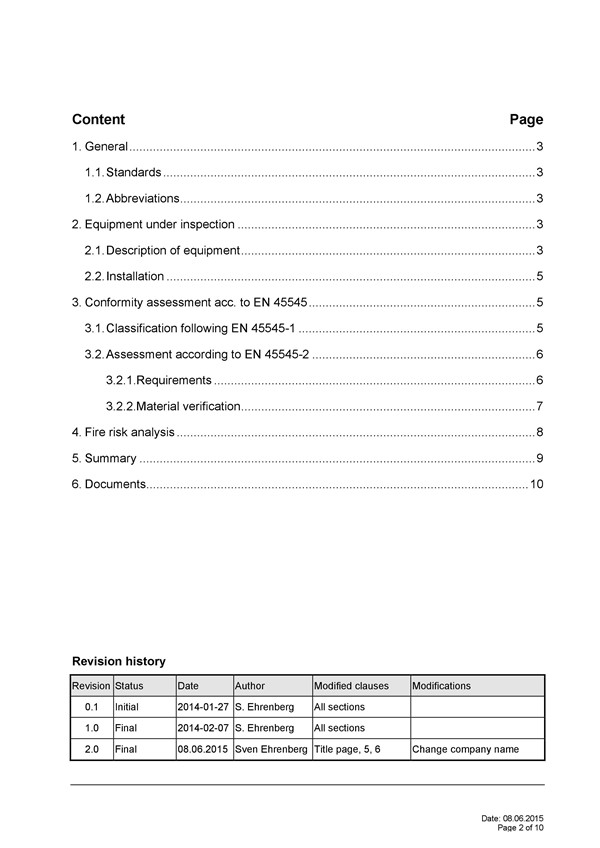

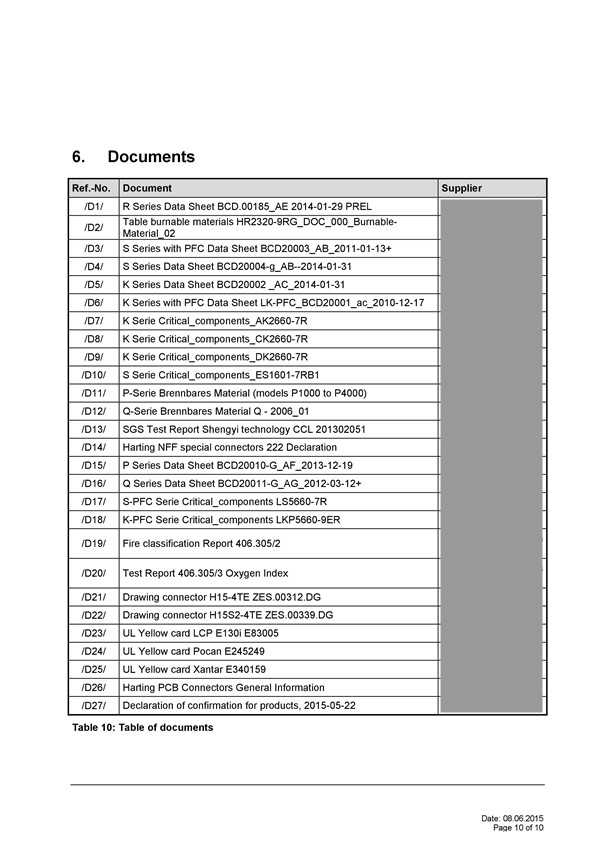

Sample report 样本报告:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
