BS EN 1021返回 Back
Test item 测试名称: Assessment of the ignitability of upholstered furniture 软体家具易燃性评估
Test info 测试内容：
| BS EN 1021-1:2014 | ignition resistance for smouldering cigarette香烟测试 |
Upholstered seating 软垫家具 |
7 |
面罩和衬里： 700X850mm 各1件；注：请在样品上注明使用面（即外露面、正面） 填料：450X300X75mm 1件 和 450X150X75mm 1件 |
如果只测试布料，需使用实验室的标准海棉填充料，需要额外增加RMB500(此费用不打折） |
| BS EN 1021-2:2014 |
ignition resistance for match flame equivalent 模拟火柴测试 |
Upholstered seating 软垫家具 |
7 |
面罩和衬里： 700X850mm 各1件；注：请在样品上注明使用面（即外露面、正面） 填料：450X300X75mm 1件 和 450X150X75mm 1件 |
如果只测试布料，需使用实验室的标准海棉填充料，需要额外增加RMB500(此费用不打折） |
| Nature of Ignition Source | Ignition Source |
| BS EN 1021-1 | Smouldering cigarette |
| BS EN 1021-2 | Match flame equivalent |
| Pr EN 1021-3 | Protocol for assessment of the ignitability of upholstered furniture Ignition source equivalent to a burning 20 g paper cushion Coverings and upholstery materials |
|
Typical Sample 典型例子 |
||
| Offices | 辦公室 | |
| Schools | 學校 | |
| Colleges | 專上學院 | |
| Low Hazard | Universities | 大學 |
| Museums | 博物館 | |
| Exhibitions | 展覽場地 | |
| Day centres | 日間中心 | |
| Hotel bedrooms | 酒店房間 | |
| Public buildings | 公用樓宇 | |
| Restaurants | 餐館 | |
| Services' messes | 機構俱樂部 | |
| Medium Hazard | Places of public entertainment | 公眾娛樂場所 |
| Public halls | 公用會堂 | |
| Public houses and bars | 公用樓宇及酒吧 | |
| Casinos | 賭場 | |
| Hospitals | 醫院 | |
| Hostels | 旅館 | |
| High Hazard | Sleeping accommodation in certain hospital wards and In certain hostels | 某些醫院病房及某些旅館供人睡覺的地方 |
| Offshore installations | 近岸設施 | |
| Very High Hazard | Prison cells | 監獄囚室 |
Lead time 测试周期: 常规 Regular service 7 working days
Sample size 送样规格:
1) 2 pcs Cover material and interliner for Smouldering cigarette test and 3 pcs Cover material and interliner for Match flame equivalent test, The cover size needed for each test shall be 800+10 mmX650+10 mm. where fabric interliner is used for each test, it shall be cut to the same dimensions, and in the same orientation as the cover, for fitting to the test rig under the cover.
面罩和衬里，尺寸为800 mmX650 mm，香烟测试需要 2pcs，明火测试需要 3pcs
2) Upholstery filling, 2 test assemblies (2 pcs for each size) are necessary for Smouldering cigarette test and 3 test assemblies (2 pcs for each size) are necessary for Match flame equivalent test, with the following dimensions: 450 x 300 x 75mm thick, and 450 x 150 x 75mm thick.
填充材料，香烟测试需要2套试样组合（1块450 x 300 x 75mm + 450 x 150 x 75mm 为一套组合）, 明火测试需要3套试样组合。
For Pr EN 1021-3 :
① Cover Fabric or interliner: Two piece of cover and interliner(if appropriate) respectively in the size of 650 x 1100mm.
② Filling: Two block of filling with 450X450X75mm thick and Two block of filling with 450 x 300 x 75mm thick.
① Cover Fabric or interliner: Two piece of cover and interliner(if appropriate) respectively in the size of 650 x 1100mm.
② Filling: Two block of filling with 450X450X75mm thick and Two block of filling with 450 x 300 x 75mm thick.
Others 其他信息：
1) In France, public seating is mandatory for the fire safety according to “Article AM 18”. The test method is based on Pr EN 1021-3 (NF D 60-013).

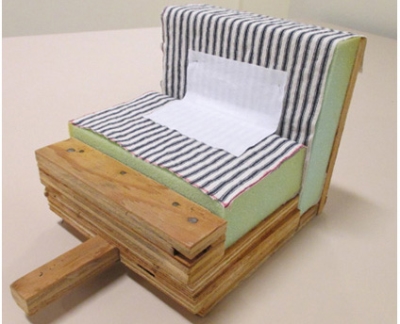

Sample for reference 参考图片:

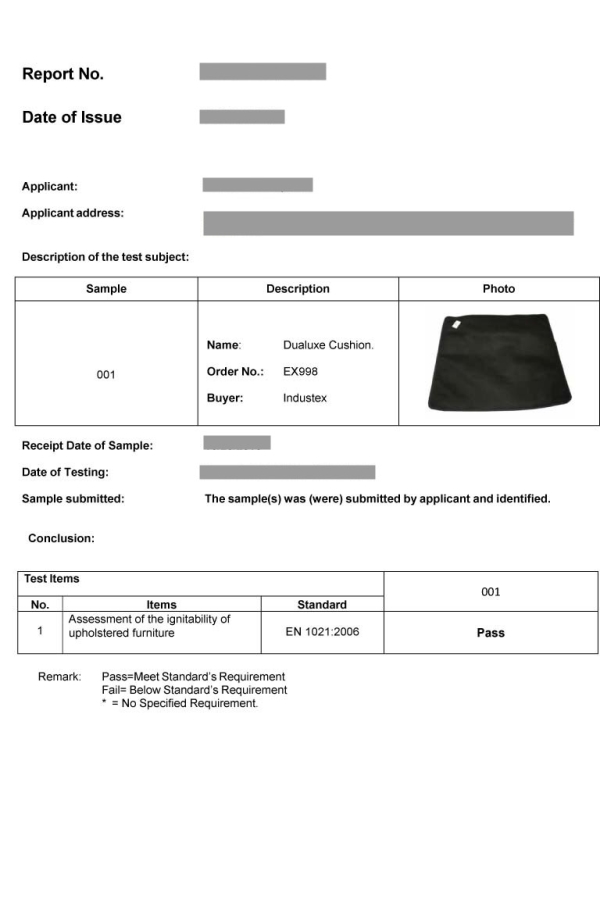

Sample Report 报告样本：
