AS/NZS 2269.1 Plywood-Structure Part.1 Test methods
胶合板一结构第4部分:测试方法
Clause Test Requirement Test Standard  Sample requirement (mm)  TAT (working days)
条款 测试要求 测试标准 样品要求(毫米) 测试周期(工作日)
6.1 Dimensions
尺寸
AS/NZS 2098.4 Product 3pcs 14
6.2 Moisture content
含水率
AS/NZS 2098.1 50*50mm*t 5pcs
6.3 Density
密度
AS/NZS 2098.7 50*50mm*t 5pcs
7.1 Bending strength
弯曲强度
AS/NZS 2269.1 52t*300*t
横纵向各5pcs
7.2 Modulus of elasticity
弹性模量
50t*400*t
横纵向各5pcs
7.3 Tension strength
拉伸强度
Face veneer grain parallel to direction of principal stress: 1800*150mm 5pcs Face veneer grain perpendicular to direction of principal stress: 1200*150mm 5pcs
7.4 Panel shear strength
板剪切强度
200*85mm
Each direction 每个方向5pcs
7.5 Compression strength
压缩强度
至少12mm厚,每个方向5pcs


Product
Standard Test item TAT SAMPLE SIZE
Plywood, Structural
木材
AS/NZS 2269.2 Moment of intertia and section modulus 35 工作日 on request
Bending strength
Modulus of elasticity
Panel Shear Strength
Surface quality  AS6669
Bond quality Type A bond test
Veneer quality
Formaldehyde Emission Class




Sample for reference 参考图片:
Responsive image

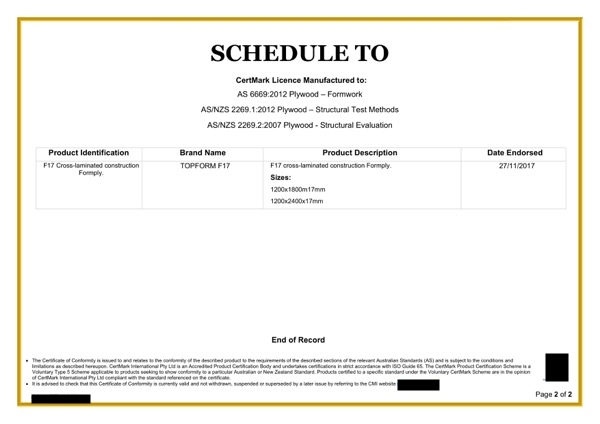

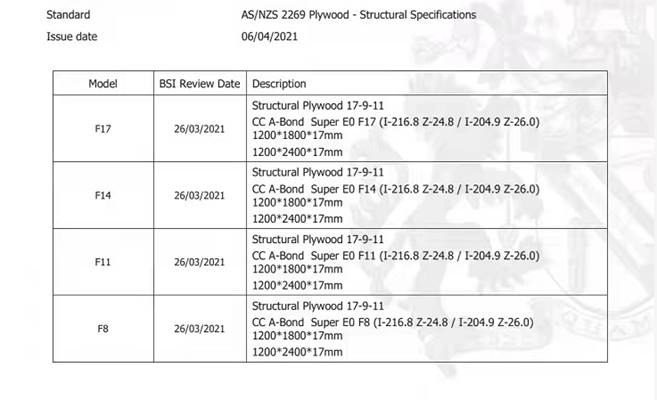

Sample report 样本报告:


Responsive imageResponsive image

Responsive image

Responsive image
