ANSI BHMA A156.9返回 Back

Test item 测试名称: American national standard for Cabinet hardware  美国国家标准橱柜五金

Test info 测试内容:

Testing Items

Cabinet hinge test (Grades 1, 2, 3)  橱柜铰链测试
4.2 Hinge permanent set test 铰链承载变形测试
4.3 Hinge operating life test 铰链使用寿命测试
     grade 1: 100000 cycles 级别1: 100000
     grade 2: 50000 cycles   级别2: 50000
     grade 3: 25000 cycles   级别3: 25000
4.4 self closing hinge closing force test and over-opening test
     自闭铰链自闭力测试和过开测试
4.4.4 over-opening test         铰链过开性能测试
grade 1: NA                 grade 1 不做
4.16 Finish test
4.16.5.1 Salt spray test
4.16.5.2 Humidity
Sample size: 6 pairs
TAT: 15/12/10 Working days
4.11 Drawer sliders tests (All grades) 抽屉滑轨测试
Standard duty drawer slide test (Grades 1, 2, 3)
标准型抽屉滑轨测试
4.11.4.1 Standard duty out-stop test 拉出限位测试
4.11.4.2 Standard duty cycle test 疲劳测试
grade 1: 50000 cycles 级别1: 50000
grade 2: 35000 cycles 级别2: 35000
grade 3: 25000 cycles 级别3: 25000
4.11.4.3 Standard duty static load test 静载测试
Heavy duty drawer slides tests (Grades 1HD)
4.11.5.1 Heavy duty drawer slide pull-force test
4.11.5.2 Heavy duty drawer slide out-stop tests
4.11.5.3 Heavy duty drawer slide rebound tests
4.11.5.4 Heavy duty drawer slide cycle test
4.11.5.5 Heavy duty drawer slide static load test
Sample size: 5 pairs
TAT: 12 Working days
4.16 Finish test
4.16.5.1 Salt spray test
4.16.5.2 Humidity
DIN 68857 Cup hinge
cycle test
20000 cycles    12working days
40000 cycles    12 working days
80000 cycles    15 working days
DIN 68858 Drawer sliders
Pull and push force test
cycles test
30000 cycles    12 working days
50000 cycles    12  working days
sample size: 4 pairs



Sample for reference 参考图片:

Responsive image

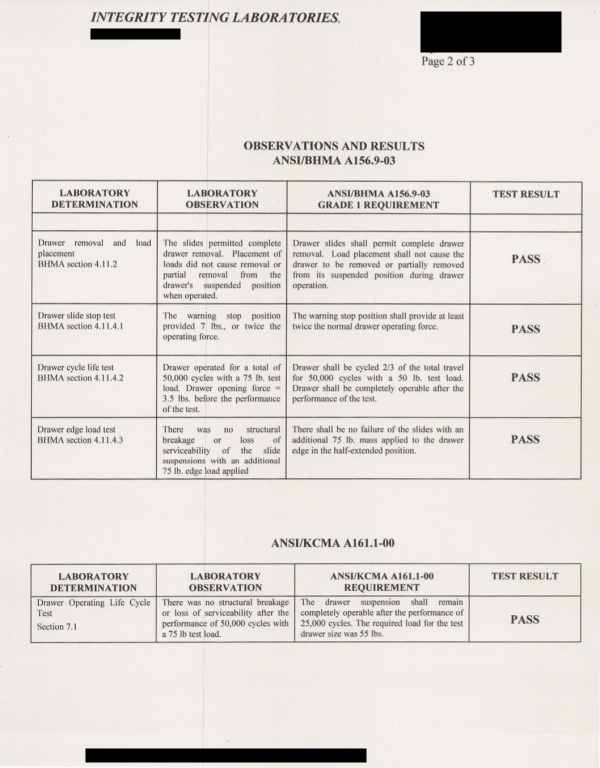

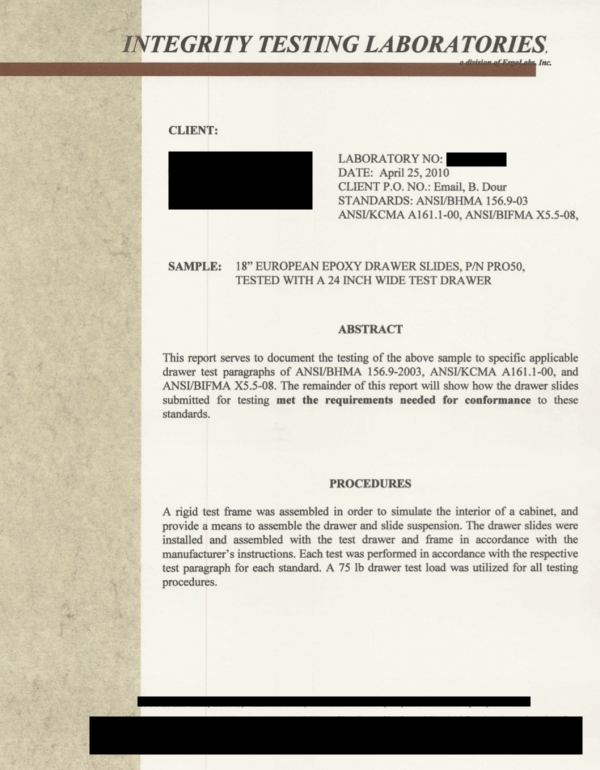

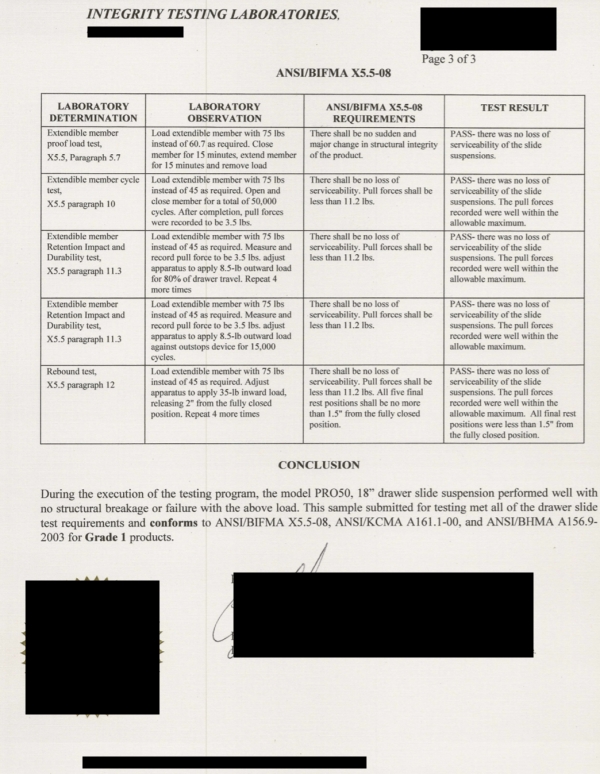

Sample Report 报告样本:
Responsive imageResponsive imageResponsive image
