Test or certification item 测试名称：EN 54-12 (Linear/optical beam smoke detectors) 火灾探测和报警系统—第12部分：感烟探测器—光束线型探测器
Test or certification info 测试和认证相关内容:
EN 54-12测试项目：
1. 标准火试验 Standard Fire Tests（核心）
多组标准烟雾火情，验证不同减光阈值下的报警响应；检验光束衰减触发报警逻辑。
2. 光束对准与偏移测试 Alignment & Beam Drift
发射器/接收器安装偏移、微小位移，验证探测器是否正常工作、故障告警。
3. 灵敏度与减光等级 Sensitivity & Obscuration Levels
检验报警阈值、阈值重复性，区分火警与故障（脏污漂移补偿）。
4. 环境耐久测试 Environmental Endurance
高低温、湿热、振动、冲击、二氧化硫腐蚀、防尘防水。
5. 供电适应性 Supply Variation
电压上下波动，考察灵敏度、故障监控稳定性。
6. 电磁兼容 EMC Immunity 射频、电快速脉冲等干扰，防止误报。
7. 杂散光抗扰测试 Stray Light Immunity 外部强光干扰，避免误触发。
8. 机械与可靠性 Mechanical & Fault Monitoring 外壳强度、光路遮挡故障报警、脏污监测功能。
|
Aspect（项目） |
European Union (EU) 欧盟 |
United States (US) 美国 |
China 中国 |
|
Specific Standard for Beam Detector |
EN 54-12 (Linear / optical beam smoke detectors) |
No dedicated "beam-only" standard |
No specific beam-only standard |
|
General Detector Standard |
EN 54 series |
UL 268 (Smoke detectors) |
GB 4715 (Point detectors), applied by analogy |
|
Certification Requirement |
CE marking mandatory under CPR |
UL listing / FM approval required by AHJ |
CCC certification mandatory |
|
Installation Standard |
EN 54-14 |
NFPA 72 (installation & application code) |
GB 50116 (fire alarm system design) |
|
Technology Definition |
Clearly defined (optical projected or reflective beam) |
Considered a type of smoke detector under UL 268 |
Treated as smoke detector category (less explicit definition) |
|
Performance Testing |
EN 54-12 defines beam-specific fire tests, alignment, obscuration levels |
Tested under UL 268 smoke detection performance criteria |
Smoke detection tests based on GB standards (no beam-specific unified test) |
|
Coverage & Application Rules |
Defined in EN 54-14 (spacing, height, beam range) |
Defined in NFPA 72 (spacing, obstructions, environmental limits) |
Defined prescriptively in GB 50116 |
|
Typical Use Cases |
Large spaces: warehouses, atriums, hangars |
Same applications (widely used in industry) |
Same, but subject to stricter approval processes |
|
Approval Bodies |
Notified Bodies (Applus September 2026) |
UL, FM Global |
CNAS labs + CCC bodies |
|
System Integration |
EN 54-13 |
NFPA 72 full system integration |
GB 50116 mandatory integration |
|
Market Access Requirement |
CE marking required for sale in EU |
AHJ approval based on UL/NFPA compliance |
CCC mandatory for legal use |
图片：

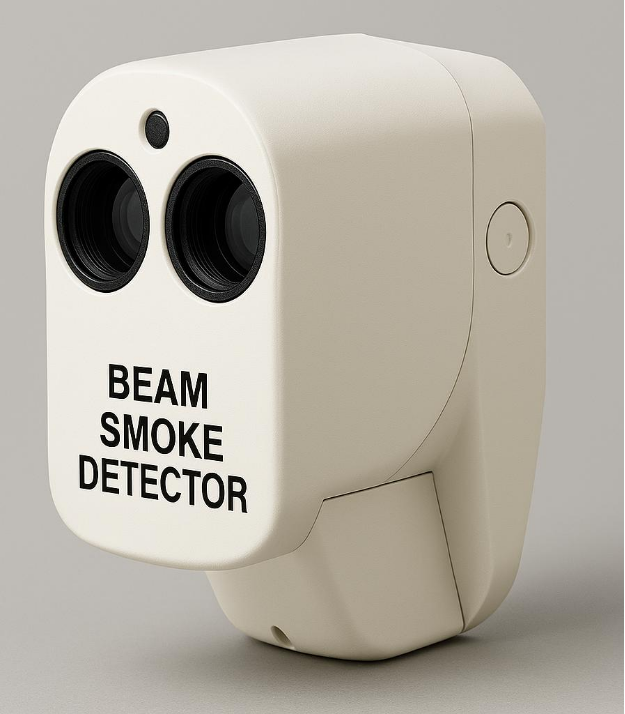

BEAM SMOKE DETECTOR光束烟雾探测器:
样本报告：
