EN 15330返回 Back

Test item 测试名称:   synthetic surface 室外用人工草皮和针刺表面 - football and rugby 足球和橄榄球


Sample size 送样规格:

EN 15330, synthetic surface 室外用人工草皮和针刺表面
以橡胶缓冲无填充物的草坪为例,报价如下:
人造草坪系统(足球)的产品测试 更新于2026年9月1日
DIN EN 15330-1: 4.4.2, 4.4.3, 4.4.4, 4.4.5, 4.4.6, 4.4.7
EUR5395
Testing duration:  4-6 weeks
Sample: 10.0 m x 1.0 m
Documentation: reduced digital test report including conformity assessment (German or English)
人造草坪地毯产品测试,包括纱线测试(长毛地毯) 更新于2026年9月1日
DIN EN 15330-1: 4.2.1, 4.2.2, 4.2.3.1, 4.2.3.2, 4.2.4.2, 4.2.5, 4.2. 6, Table 3
(synthetic turf)
RAL-GZ 944: Annex C, Annex D
DIN 18035-7: Table 15, Table B.1
Testing duration: approx. 6-8 months
Sample: 1.5 m x 1.0 m with a seam in the middle of the sample
10 m yarn per type
Documentation: reduced digital test report including conformity assessment (German or English)
Required documents: technical data sheet
弹性层适用性试验 更新于2026年9月1日
DIN EN 15330-4
Sample name:
Tested parameters:
Shock absorption (23°C, 40°C, 5°C, -5°C, after ageing)
Vertical deformation (23°C, 40°C, 5°C, -5°C, after ageing) Vertical water infiltration rate
Tensile properties
Dimensional stability
Resistance against dynamic fatigue after repeated impacts Resistance to residual deformation after short-term load Resistance to residual deformation after static load
Thermal resistance (external)
Physical description
Thickness
Weight per unit area
Environmental and toxicological properties
Testing duration: 8 -10weeks
Sample dimensions: 2 samples at approx. 1 m x 1 m each Documentation: reduced digital test report including conformity assessment (German or English)
Required documents:
technical data sheet
manufacturer's information (shock absorption, thickness, tensile  strength)
弹性层(EL)在位冲击垫的性能测试 更新于2026年9月1日
Performance testing of an in-situ shockpad
Standard specification: DIN 18035-7 and EN 15330-1 Sample name:
Testing parameters: shock absorption thickness
permeability
transverse tensile strength
tensile strength (before and after ageing)
environmental impact assessment
Testing duration: 4-6 weeks
Sample dimensions: approx. 1 m x 1 m
Documentation: reduced digital test report including conformity assessment (German or English)
Required documents:
technical data sheet
manufacturer's infromation (shock absorption, thickness, tensile  strength)
用作现场减震垫(EL/ET)组成部分的橡胶颗粒的识别参数 更新于2026年9月1日
Specifications: DIN 18035-7, table 16 and 18
Product name:
- to be specified
Relevant Parameters:
- extraction (external)
- loss of ignition (550 °C)
- grain size
Duration of the testing: approx. 6-8 weeks
Sample amount: 2 kg
作为现场缓冲垫(EL)组成部分的聚氨酯粘合剂的识别参数 更新于2026年9月1日
Specifications: DIN 18035-7, table 16 and 18
Product name:
- to be specified
Relevant Parameters:
- IR spectroscopy (external)
- NCO concent (external)
- non-volatile content (external)
- loss of ignition (550 °C)  (external)
- density (external)
- viscosity (external)
- tensile strength on cured film
- elongation at break on cured film
- E-module on cured film
Duration of the testing: approx. 6-8 weeks
Sample amount: 3 separate containers with 1l liquid material each


Others 其他:

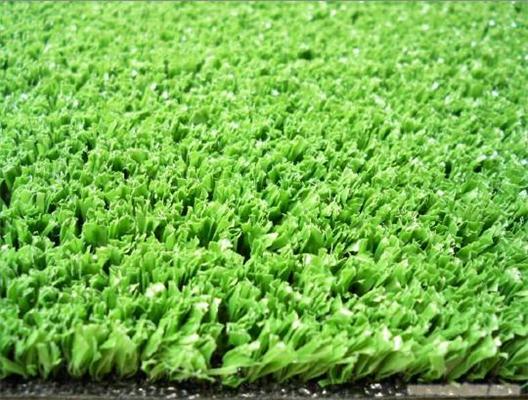

Picture for Reference 参考图片:
Responsive image

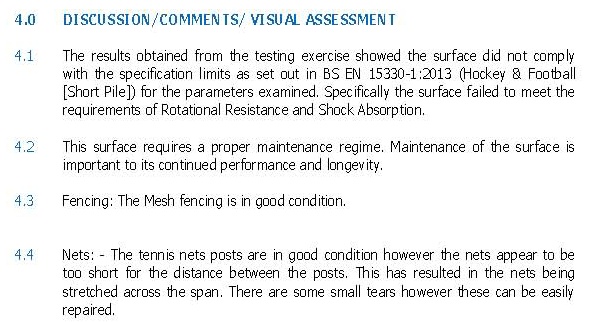

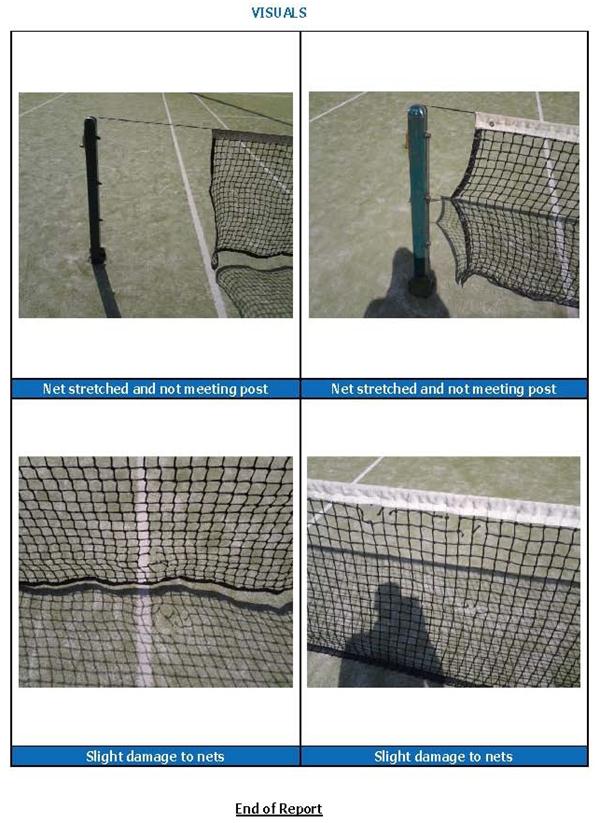

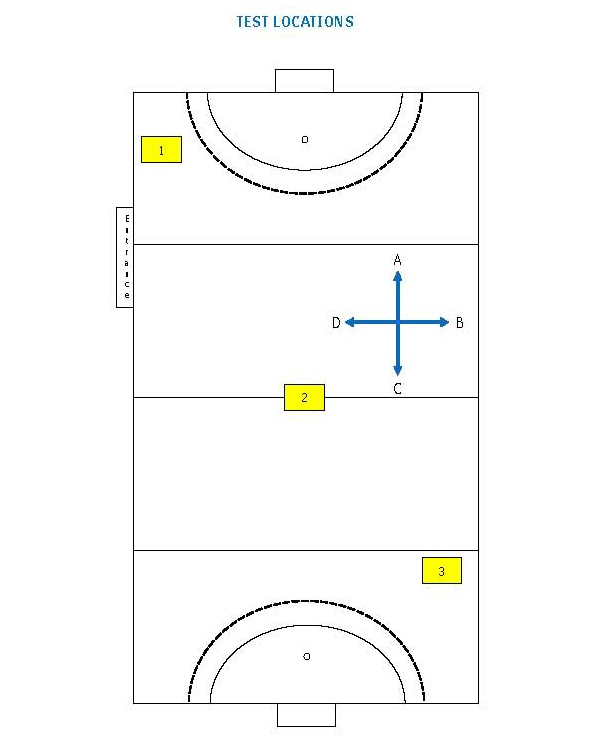

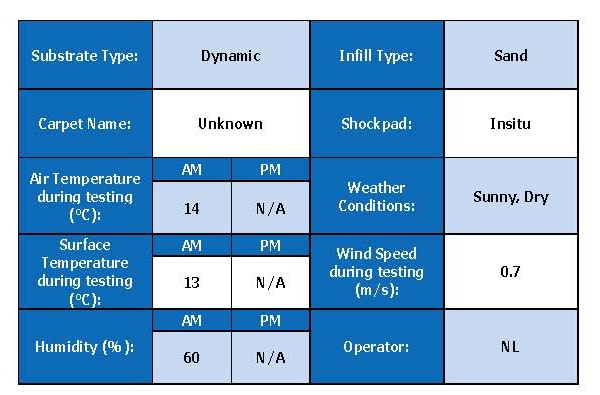

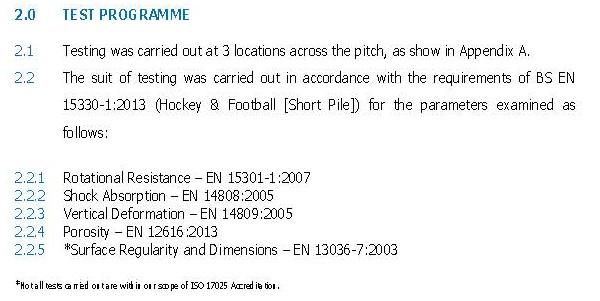

Sample Report 报告样本:
 Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
