IEC 60695-11-10返回 Back
Test item 测试名称:50W horizontal and vertical flame test methods 水平垂直燃烧测试
Test info 测试内容:
Test Clause Requirement
Conditioning
Vertical burning Test 23 ±2°C and 50±5 percent relative humidity for a minimum of 48 hours and preconditioned in an air-circulating oven for 168 hours at 70±1°C and then cooled in the desiccator for at least 4 hours at room temperature, prior to testing.
Horizotal burning Test  Sets of three bar test specimens shall be conditioned for a minimum of 48 h at 23 °C ± 2 °C and 50 % ± 5 % relative humidity. Once removed from the conditioning chamber, the test specimens shall be tested within 1 h

Sample Required:
Vertical burning Test 垂直测试 22 PCS Bar test specimens: 125 mm ± 5 mm long by 13,0 mm ± 0,5 mm wide, and shall be provided in the minimum and maximum thickness normally supplied. The thickness shall not exceed 13,0 mm. Edges shall be smooth, and the radius on the corners shall not exceed 1,3 mm. Other thicknesses may be used by agreement between the interested parties and, if so, shall be noted in the test report
Turnaround time: normal (12 working days)
所需时间: 标准(12 个工作天)

Horizotal burning Test  水平测试 8 PCS Bar test specimens: 125 mm ± 5 mm long by 13,0 mm ± 0,5 mm wide, and shall be provided in the minimum and maximum thickness normally supplied. The thickness shall not exceed 13,0 mm. Edges shall be smooth, and the radius on the corners shall not exceed 1,3 mm. Other thicknesses may be used by agreement between the interested parties and, if so, shall be noted in the test report
Turnaround time: normal (9 working days)
所需时间: 标准(9 个工作天)

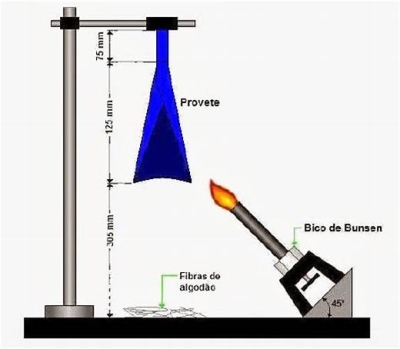

Sample for reference 参考图片:

Responsive image

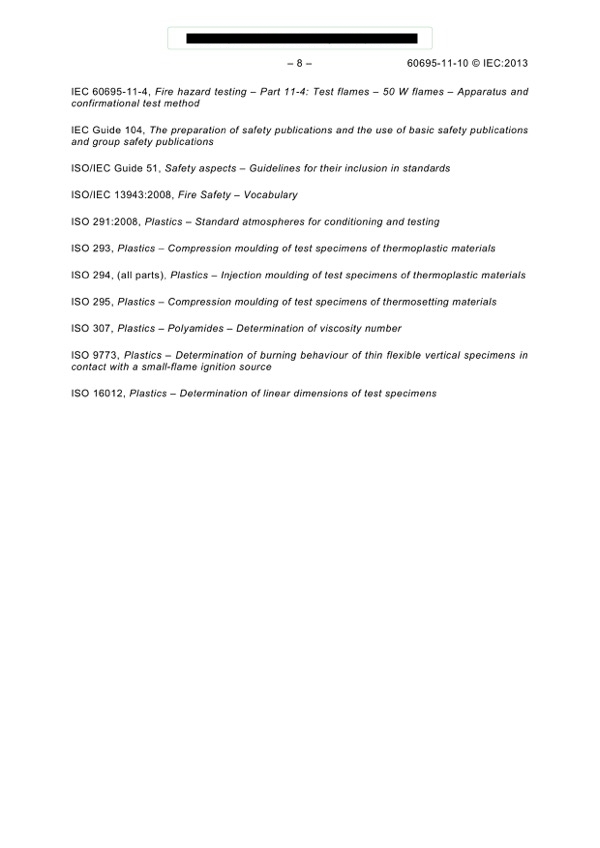

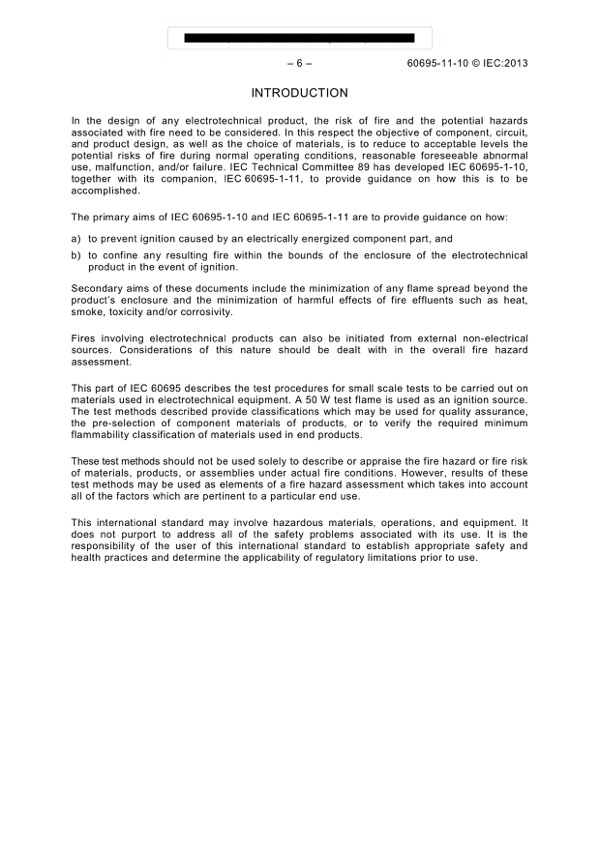

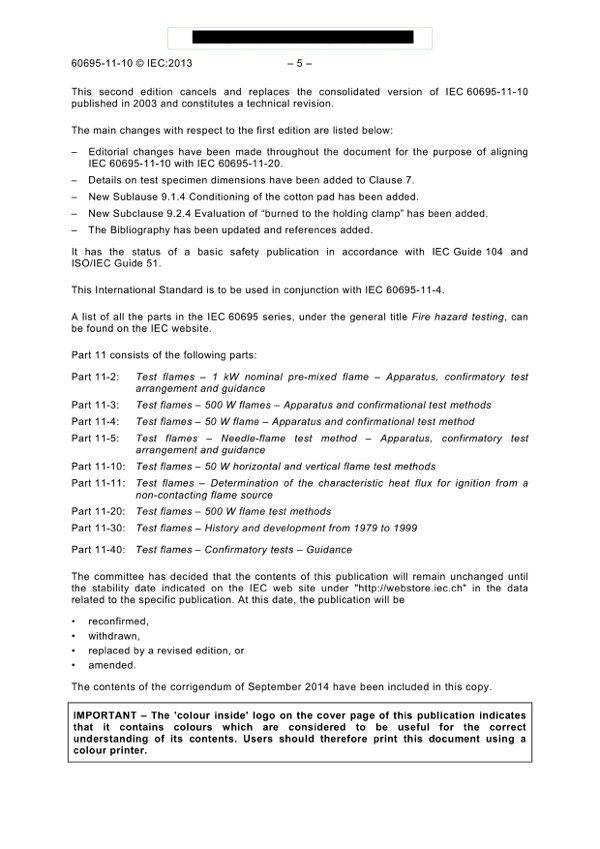

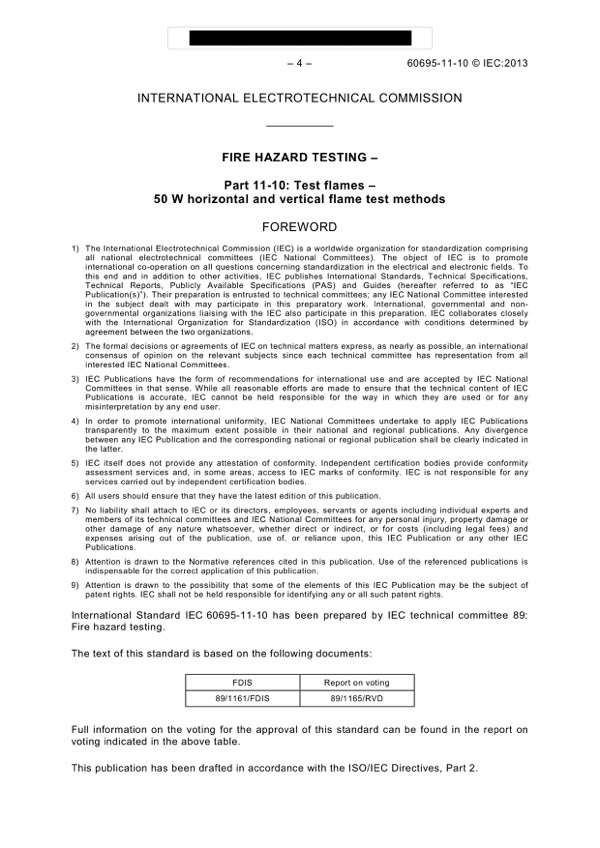

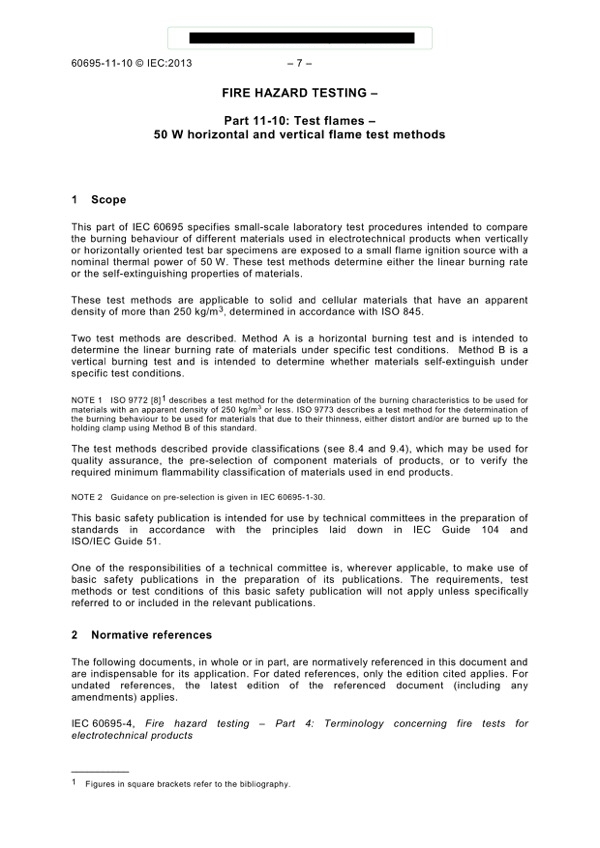

Sample Report 报告样本:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
