EN ISO 20471返回 Back


Test item
测试名称:SPECIFICATION FOR HIGH VISIBILITY WARNING CLOTHING 高可见度警示服装规范

Norm Refer 涉及标准: EN 471


Test info 测试内容:

Responsive image



Responsive image



Name of the Test

Standard

1 .Designs & sizes 设计和尺寸

EN 340

2. Colour Fastness of back ground material 背景材料色牢度



i. Colour Fastness to Rubbing  擦洗色牢度

ISO 105 X12

ii. Colour Fastness to Perspiration  排汗色牢度

ISO 105 E04

iii. Colour Fastness to Laundering  洗烫色牢度

ISO 105 C06

iv. Colour Fastness to Drycleaning  干洗色牢度

ISO 105 D01

v. Colour Fastness to Hypochloride bleaching 次氯酸盐漂白色牢度

ISO 105 N01

vi. Colour Fastness to Hot pressing 热挤压色牢度

ISO 105 X11

vii. Dimensional Change 尺寸变化

EN 340

3.Mechanical properties of back ground materials背景材料的机械性能



i. Tensile strength for woven materials 编织材料的抗张强度

ISO 5081

ii. Bursting strength for knitted materials 结合材料的破裂强度

ISO 2960

vii. Ergonomics人体工程学

EN 340 Clause 4

iv. Temperature variation 温度变化

-

v. Washing 清洗

ISO 6330

vi. Drycleaning 干洗

ISO 3175

4. Marking & Instructions 标记和说明

EN 471


 High visibility clothing  - EN ISO 20471
Background material 基底材料(荧光&非荧光)的检测)
5.1 Chromaticity - As received (only for 荧光材料)
5.2 Chromaticity - After xenon test (only for 荧光材料)
5.1 &7.5.1 Chromaticity - After washing test (only for 荧光材料, if washable,
number of wash cycle depends on care label but at least 5 washes)
5.1 &7.5.1 Chromaticity - After dryclean test (only for 荧光材料,if dry cleanable, number of dryclean cycle depends on care label but at least 5 dryclean cycles)
5.3.1 Colour fastness to rubbing
5.3.2 Colour fastness to perspiration
5.3.3 Colour fastness to washing
5.3.3 Colour fastness to dryclean (if drycleanable)
5.3.3 Colour fastness to hypochlorite bleaching (if can be bleached)
5.3.3 Colour fastness to hot pressing (if can be ironed)
5.4 Dimensional stability to washing [if washable, number of wash cycle depends on care label but at least 5 washes]
5.4 Dimensional stability to dryclean(if dry clean only, number of dryclean cycle depends on care label but at least 5 dryclean cycles)
5.5.1 Tensile strength (for woven fabric)
5.5.2 Bursting strength (for knitted fabric)
5.5.3 Tensile strength (coated fabrics  / laminates)
5.5.3 Tear strength (For coated fabrics / laminates)
5.6.2 Water vapour resistance(harness, tabards and waistcoat exempt)
5.6.3 Thermal resistance  (for garments not offer protection against rain, but water vapour resistance exceeds 5 m2.Pa/W)
Retroreflective material 反光条的反光度检测
6.1 Retroreflective - As received
6.2.1 Retroreflective - After abrasion
6.2.1 Retroreflective - After flexing
6.2.1 Retroreflective - After folding at cold temperature
6.2.1 Retroreflective - After temperature variation
6.2.1 Retroreflective - After washing (if washable,
number of wash cycle depends on care label but at least 5 washes)
6.2.1 Retroreflective - After dryclean (if dry cleanable,number of dryclean cycle depends on care label but at least 5 dryclean cycles)
6.2.1 Retroreflective - After influence of rainfall
Garment Test
4. Design criteria
Note: Clothing shall meet all the applicable general requirements of EN ISO 13688, additional samples will be needed.
请确认是否安排EN ISO 13688相关测试 (提醒: CE certificate申请,必须满足ISO 13688)


Lead time 测试周期:
3 weeks


Sample size 送样规格: 4pcs finished products + 1m x 1m x 6pcs


Other 其他信息:

根据欧盟委员会的的决定,将修订协调标准清单并于2013930日结束推定符合旧标准EN471:2003+ A1

2013101日起,不管任何其他提到的有效期,所有根据EN471测试的安全反光服的EEC类检验证书将视为无效。2013101日起,所有的安全反光服在投放市场前应符合统一的EN ISO20471:2013标准。

重大变更如下所列:


  • 清洗周期过后应满足颜色和亮度的要求

  • 耐汗渍色牢度沾色的染色要求将从三级改为最低四级

  • 编织材料的拉伸强度的要求更改为最低100

  • 针织材料的破裂强度要求改为至少100千帕(50平方厘米的测试面积)和最低200千帕(7.3平方厘米的测试面积)

  • 单层或多层服装的物理性能测试,Ret不能大于5平方米帕/瓦特。如果Ret超过5平方米帕/ 瓦特,Rct(符合ISO11092)必须测量并应确定imt ≥0.15

  • 反光材料的各项性能级别没有区分 - 要求与EN4712级一样

新的标志更改如上图。(X=所确定的性能等级的服装,而导致的反光材料的最小面积)

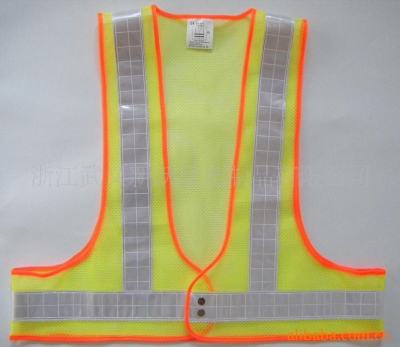

Sample for reference 参考图片:
Responsive image

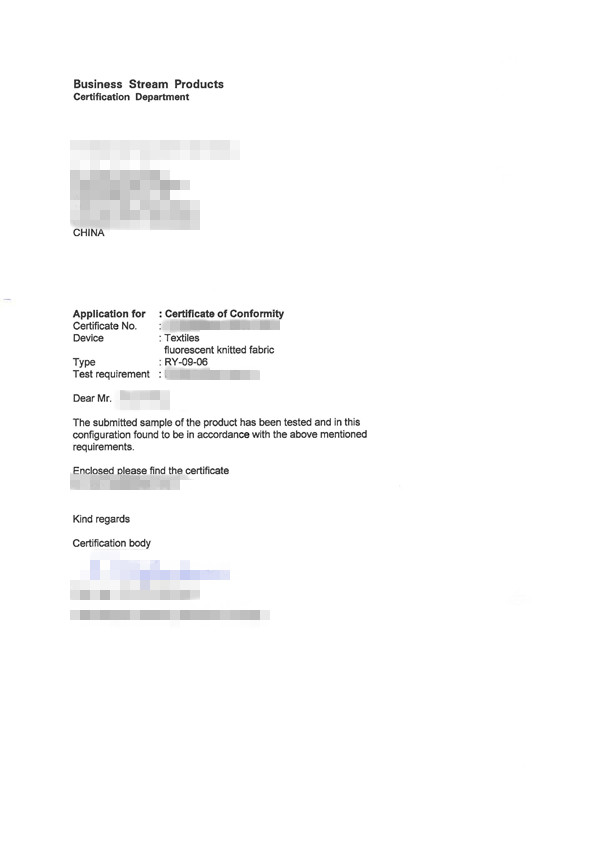

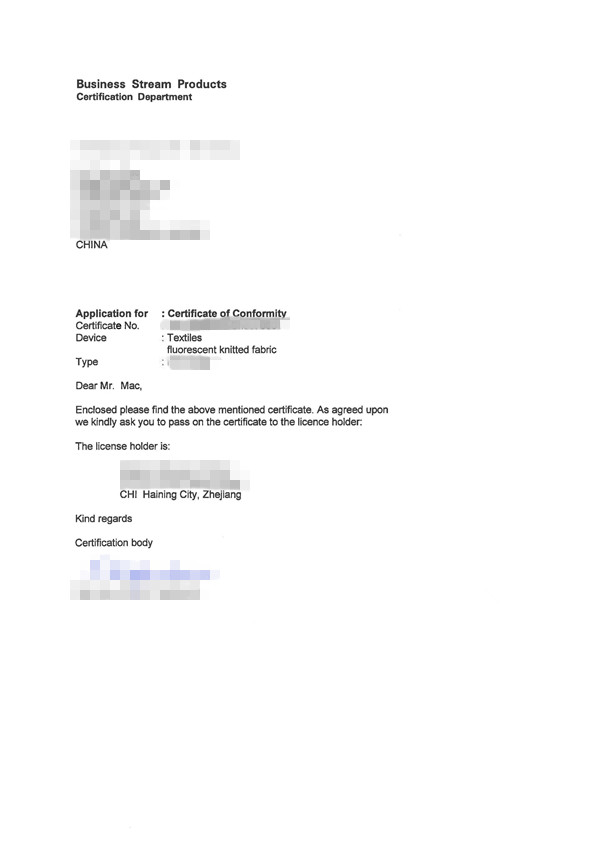

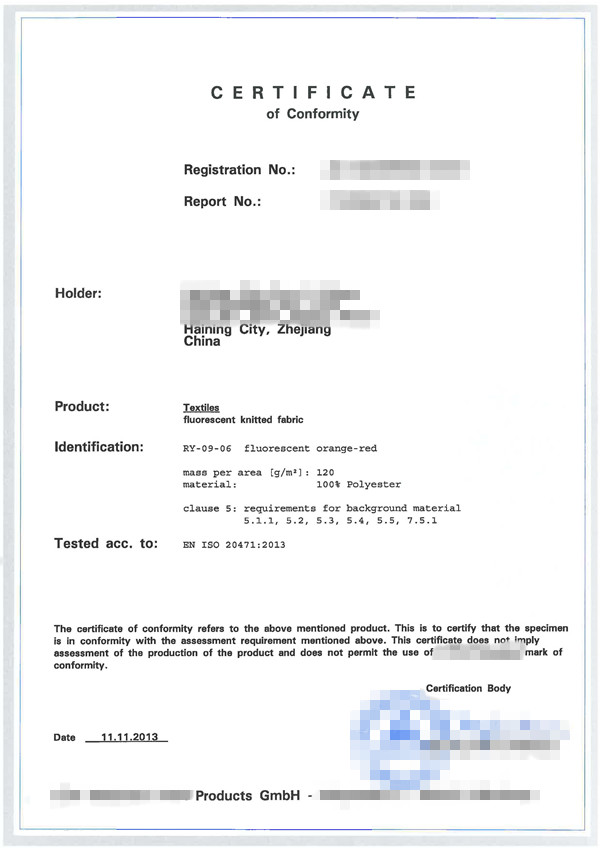

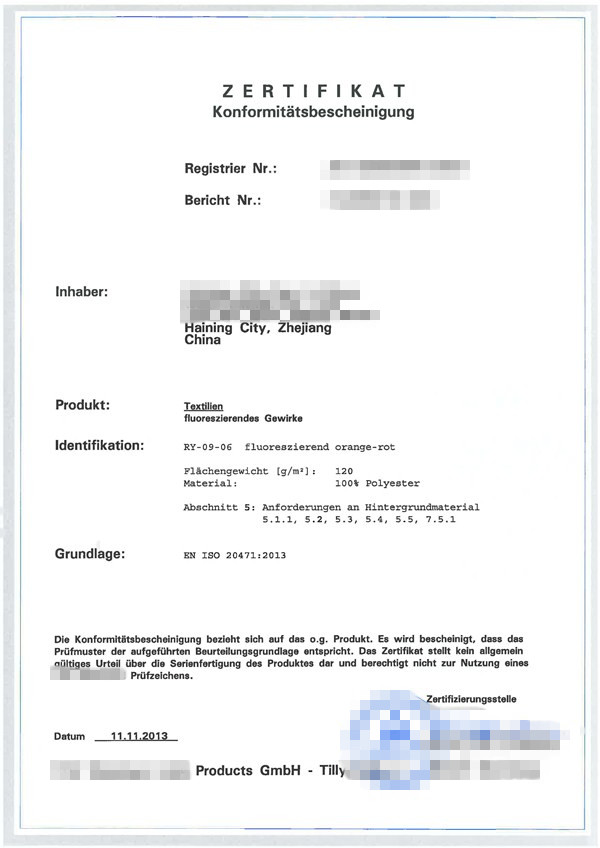

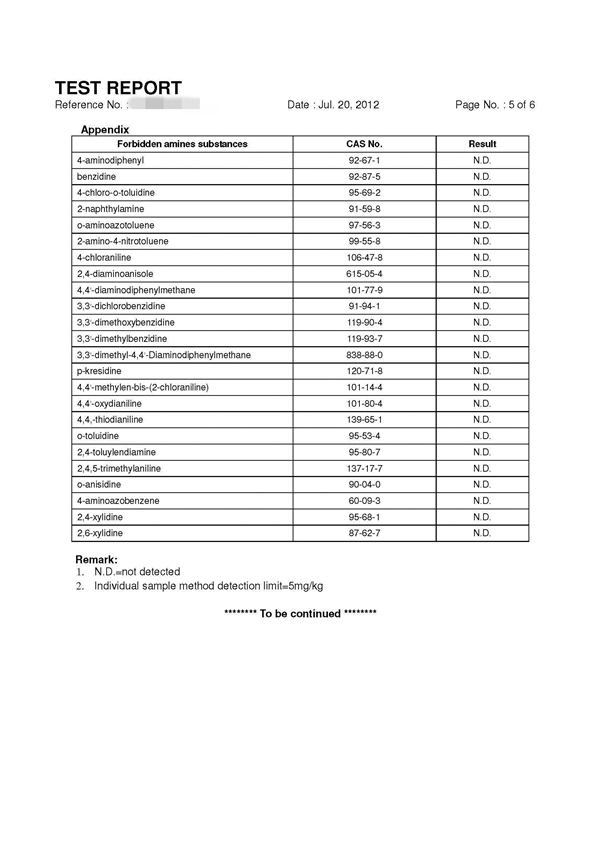

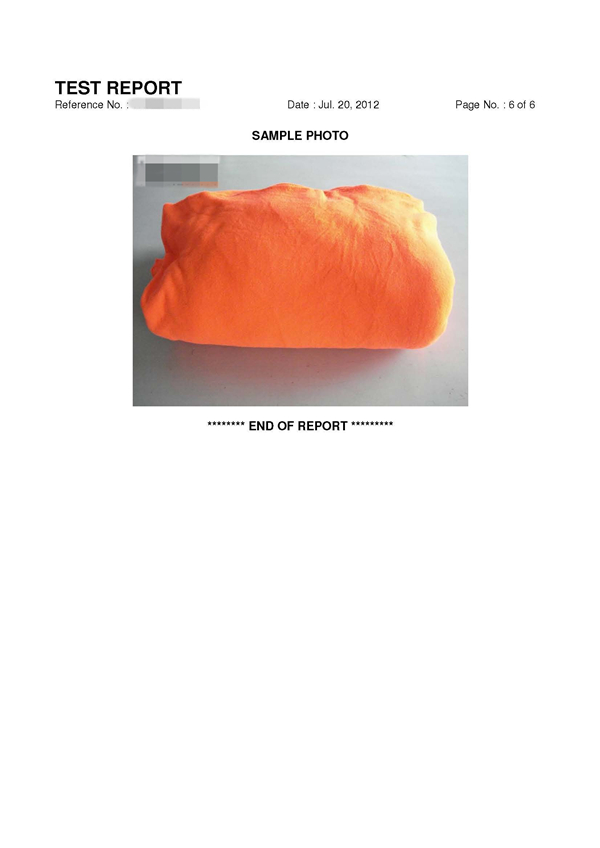

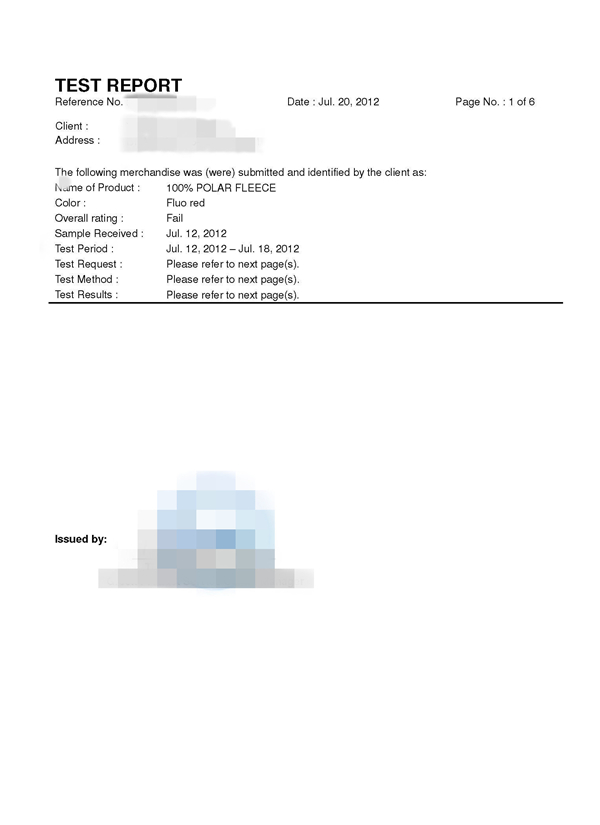

Sample report 样本报告:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
