EN 12915-1返回 Back
Test item 测试名称: Virgin granular activated carbon 饮用水处理用产品.粒状活性碳粒径大于180微米 Particle size greater than 180 microns
Test info 测试内容:
| 1. Particle size distribution |
| According to EN12902-Products used for treatment of water intended for human consumption. |
| Inorganic supporting and filtering materials. Methods of test |
| 2. Wettability |
| Immersion of the product in boiling water.Cooling,sedimentation and filteration of the supernatant |
| through a sieve to determine the quantity of material that is not wetted. |
| 3. Bulk density packed |
| The bulk density packed of granular activated carbon is determined by measuring the volume packed |
| by a free fall from a vibrating feeder into a 100ml graduated cylinder and weighing the known volume. |
| 4. Ball-pan hardness |
| A screened and weighed sample of granular activated carbon is placed in a special hardness pan |
| with a number of stainless steel balls,then subjected to a combined rotating and tapping action for 30 |
| min. Degradation of particle size is determined by measuring the mass of granular activated carbon |
| minimun particle size of the original sample. |
| 5. Water-soluble material |
| According to EN12902-Products used for treatment of water intended for human consumption. |
| Inorganic supporting and filtering materials.Methods of test |
| 6. Water-extractable substances |
| According to EN12902-Products used for treatment of water intended for human consumption. |
| Inorganic supporting and filtering materials.Methods of test |
| 7. Iodine |
| According to EN12902-Products used for treatment of water intended human consumption. |
| Inorganic suppotring and filtering materials.Methods of test |
Test limit 限量要求:
| 1.Particle size distribution | ||||
| Test request | Maximum Permissible Limit (%) | |||
| 1) Oversize particles | 1)+2)≤15 | |||
| 2) Undersize | ≤5 | |||
| 2.Wettability | ||||
| Wettability (%) | Maximum Permissible Limit (%) | |||
| 99.99 | ≥99 | |||
| 3.Bulk density packed | |||||
| Bulk density | Maximum Permissible Limit (kg/m³） | ||||
| 488.9 | ≥180 | ||||
| 4.Ball-pan hardness | ||||
| Hardness | Maximum Permissible Limit (%) | |||
| 99.6 | ≥75 | |||
| 5.Water-soluble material | |||||
| Impurity | Maximum Permissible Limit % (m/m) #1 | ||||
| Ash | 15 | ||||
| Water #2 （at the time of packing #3) | 10 #4 | ||||
| Water-soluble material | 3 | ||||
| Zinc | 0.002 | ||||
| 6.Water-extractable substances | |||||||
| Substances | Maximum Permissible Limit the extraction water (ug/L) | ||||||
| Arsenic(As) | 10 | ||||||
| Cadmium(Cd) | 0.5 | ||||||
| Chromium(Cr) | 5 | ||||||
| Mercury(Hg) | 0.3 | ||||||
| Nickel(Ni) | 15 | ||||||
| Lead(Pb) | 5 | ||||||
| Antimony(Sb) | 3 | ||||||
| Selenium(Se) | 3 | ||||||
| Cyanide(CN) | 5 | ||||||
| PAH #1 | 0.02 | ||||||
| 7. Lodine Number | ||||
| lodine Number | Maximum Permissible Limit (mg/g) | |||
| 1941.2 | 600 | |||
Lead time 测试周期: 常规 regular 30 working days
Sample size 送样规格: 3KG
Others 其他信息:
Sample for reference 参考图片:

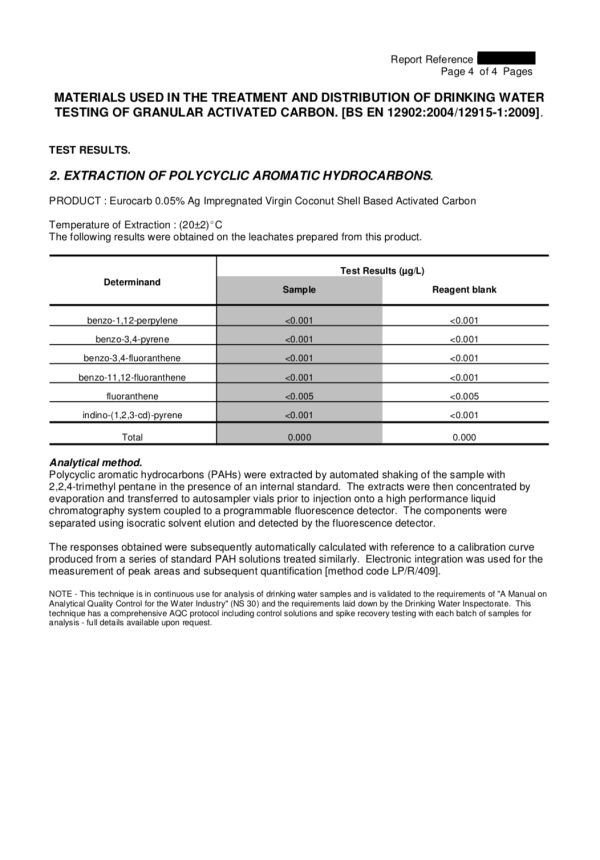

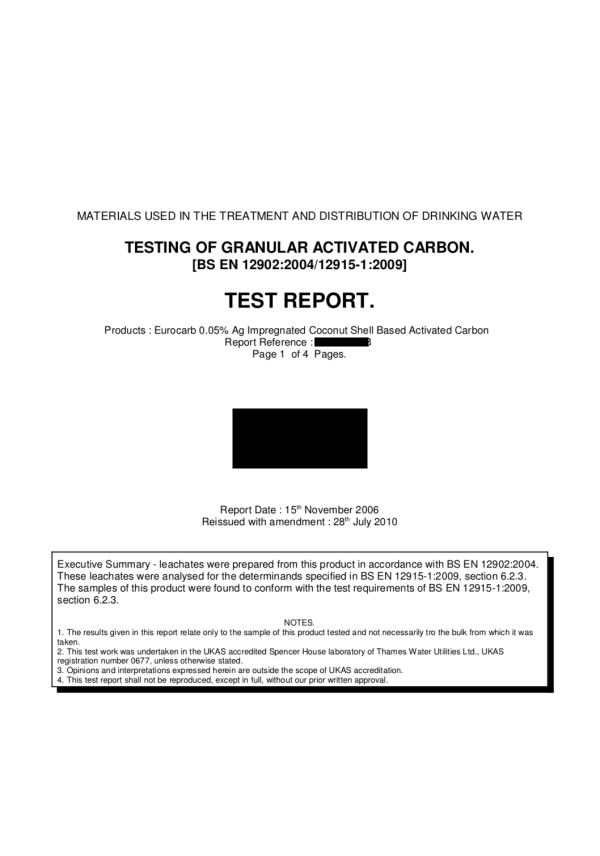

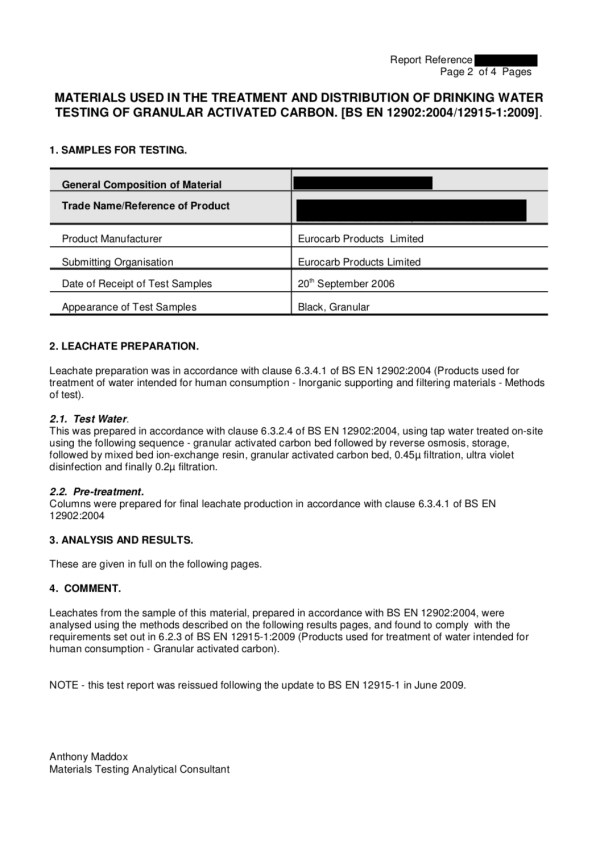

Sample Report 报告样本：
