EN 1036-2返回 Back
Test item 测试名称:EN 1036-2 室内用镀银浮法玻璃镜
| EN 1036-2 Glass in buiding - Mirrors from silver - coated float glass for internal use Part 2: Evaluation of conformity; product standard | ||||
| 建筑玻璃-室内用镀银浮法玻璃镜 第2部分：第2部分：合格评定，产品标准 | ||||
| Clause | Test Requirement | Test Standard | Sample requirement（mm） | TAT（working days） |
| 条款 | 测试要求 | 测试标准 | 样品要求（毫米） | 测试周期（工作日） |
| 4.3.2.3 |
Reaction to fire 与火反应 |
EN 13501-1 | 根据等级 | 25 |
| 4.3.2.8 |
Pendulum body impact resistance 冲击测试 |
EN 12600 | (876±2) x (1938±2)mm | 7 |
| Class 1 190mm; 4pcs | ||||
| Class 2 190 and 450mm; 8pcs | 7 | |||
| Class 3 190, 450 and 1200 mm;12pcs | 7 | |||
| 4.3.2.9 |
Resistance against sudden temperature changes and temperature differentials 抵抗温度突变和温差性能 |
the temperature, temperature differntials & testing time are offered by client | 300x300mm 3pcs | 7 |
| 4.3.2.13 |
Light transmittance 可见光透射比 |
EN 410 | 100x100mm 1pc | 7 |
|
Light reflection 可见光反射比 |
100x100mm 1pc | 7 | ||
| 4.3.2.14 |
Solar ennergy transmittance 太阳光直接透射比 |
EN 410 | 100x100mm 1pc | 7 |
|
solar ennergy reflectance 太阳光直接反射比 |
100x100mm 1pc | 7 | ||
| 4.5 |
Dangerous substances 有害物质 |
Reach | ≥200g | 7 |
| 5.2.2.1 |
light reflectance 反射性能 |
EN 1036-1 | 100x100mm 1pc | 9 |
| EN 410 | ||||
|
NSS 中性盐雾试验 |
EN ISO 9227 | 100x100mm 3pcs | 25 | |
|
CASS 铜离子加速盐雾试验 |
EN ISO 9227 | 100x100mm 3pcs | ||
|
Protective coating adhesion 保护涂层附着力 |
EN ISO 2409 | 100x100mm 3pcs | 7 | |

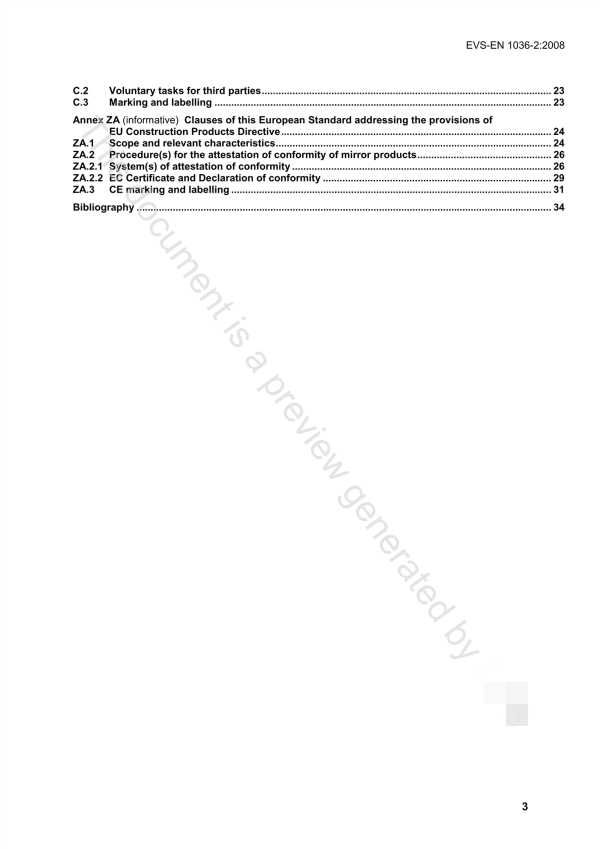

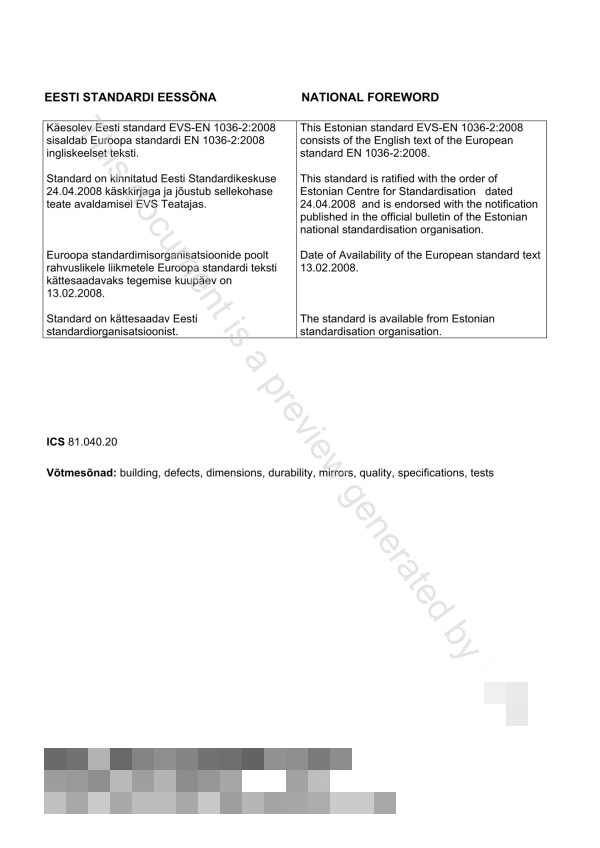

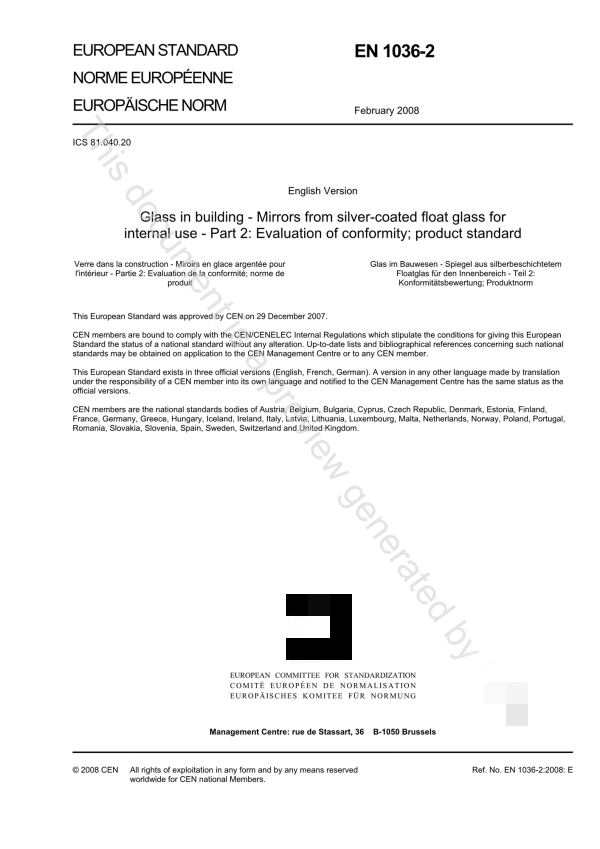

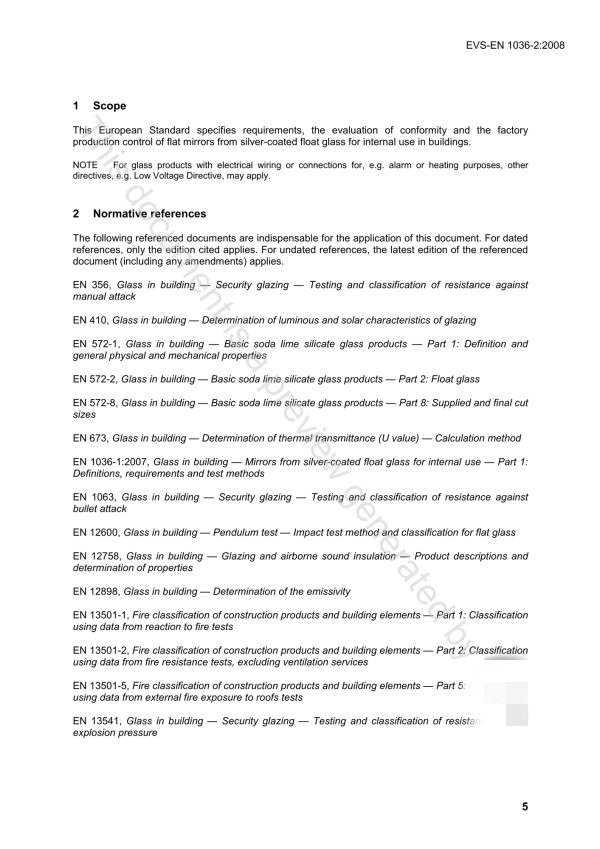

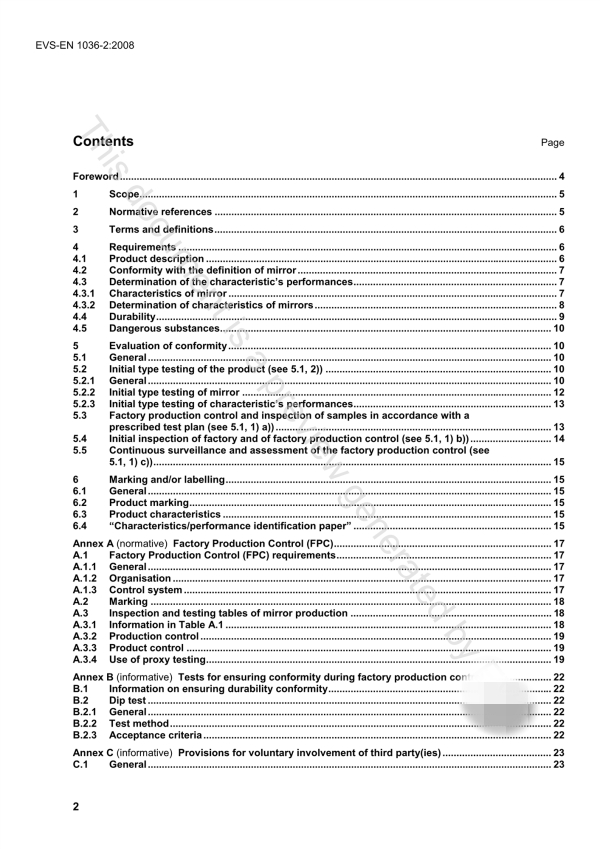

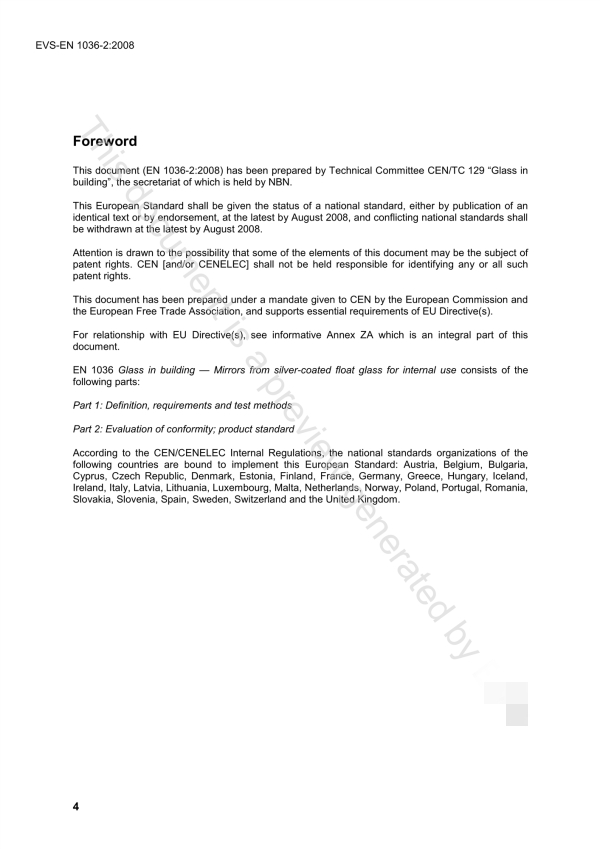

Sample for reference 参考图片:
Sample Report 报告样本：
