DIN 4102-1, B1返回 Back

Test item 测试名称:  Reaction to fire tests - Ignitability of building products subjected to direct impingement of flame. 建筑材料对火反应

Refer products 涉及产品:  铺地建材, 墙面装饰, 工程面料, 管道材料…

Lead time 测试周期:  常规 regular service 15 working days

Sample size 送样规格:

非铺地材料
1000mm*190mm*thickness(in service), 12PCS
edge ignition: 90mm*190mm*thickness, 5 PCS
face ignition: 90mm*230mm*thickness, 5 PCS
横向纵向都要提供上述试样尺寸和数量

铺地材料
1050mm*230mm*thickness(in service), 3 PCS
edge ignition: 90mm*190mm*thickness, 5 PCS
face ignition: 90mm*230mm*thickness, 5 PCS
横向纵向都要提供上述试样尺寸和数量

Others 其他信息:
1. 测试条件参考DIN 50014
2. 测试报价按照每种材质每种厚度每种颜色
3. 通过B2测试, 通过DIN4102-15燃烧竖炉试验样品, 190 x 1000mm 有方向性, 各4片. 平均剩余长度大于15cm, 且不能为零, 平均烟气温度不大于200摄氏度

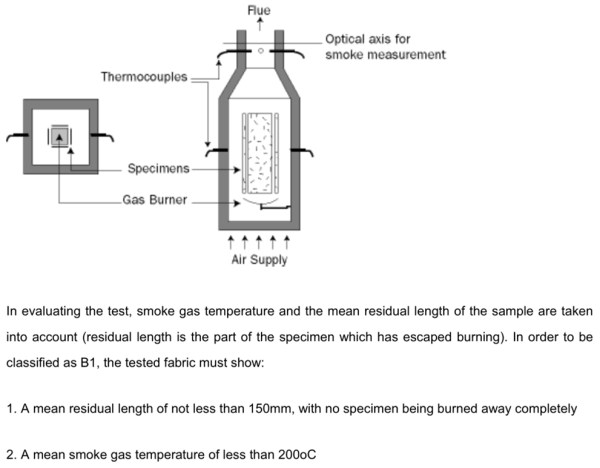

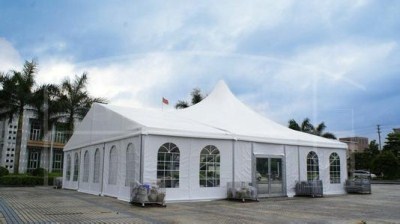

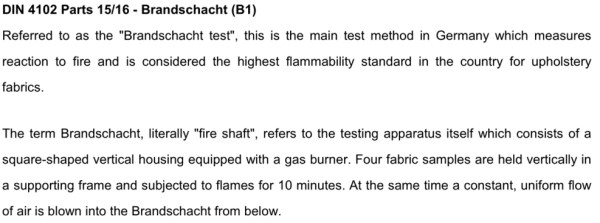

Photo for reference 参考图片:
Responsive image

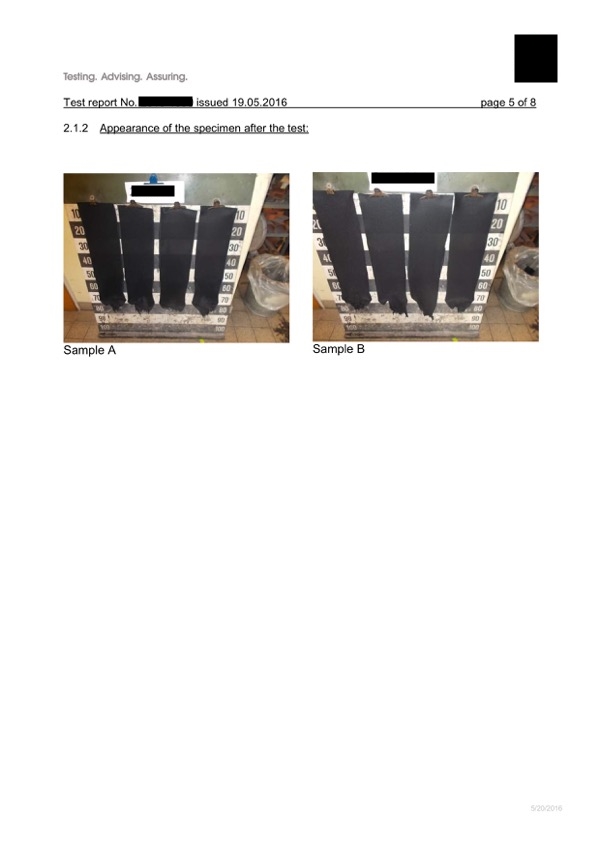

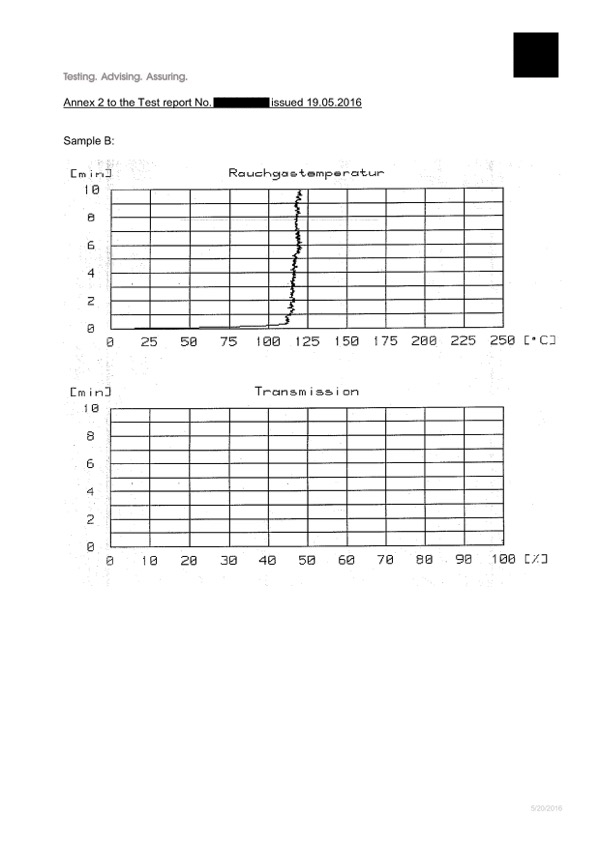

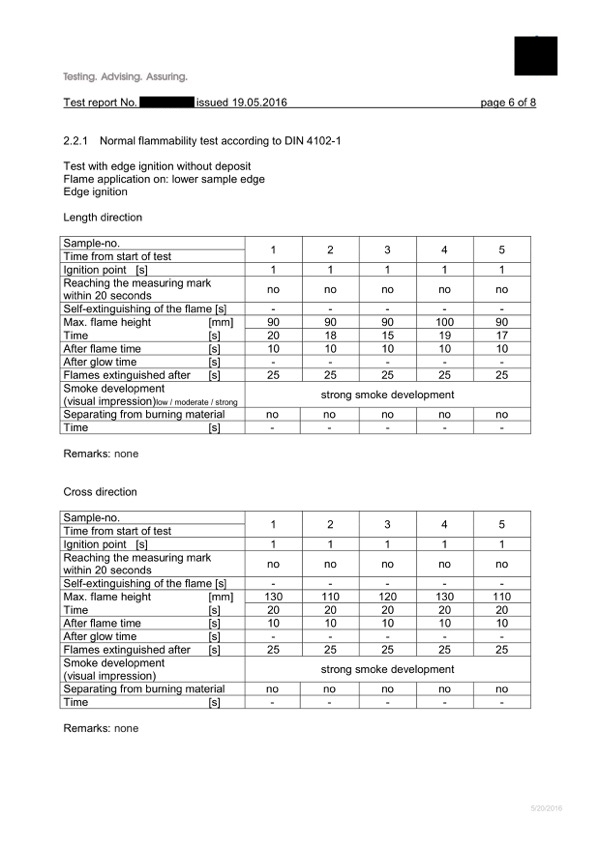

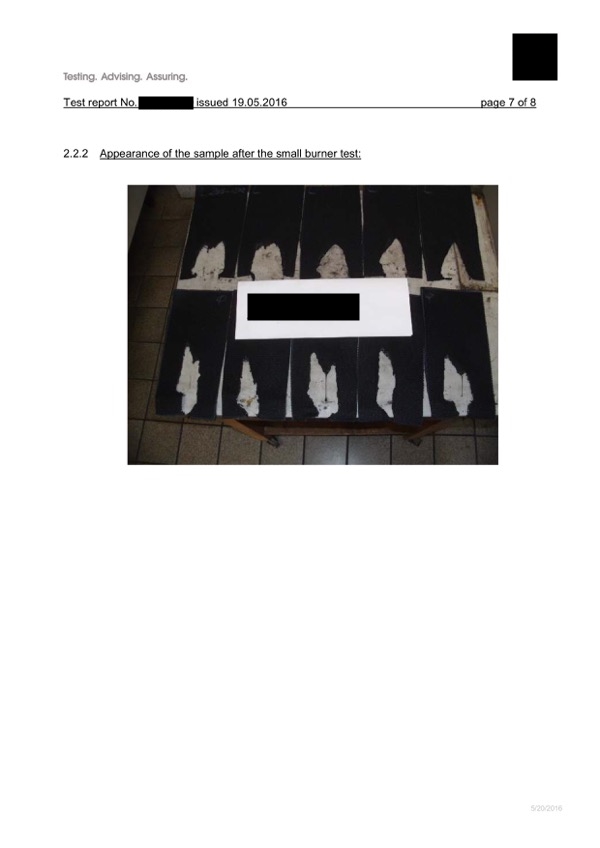

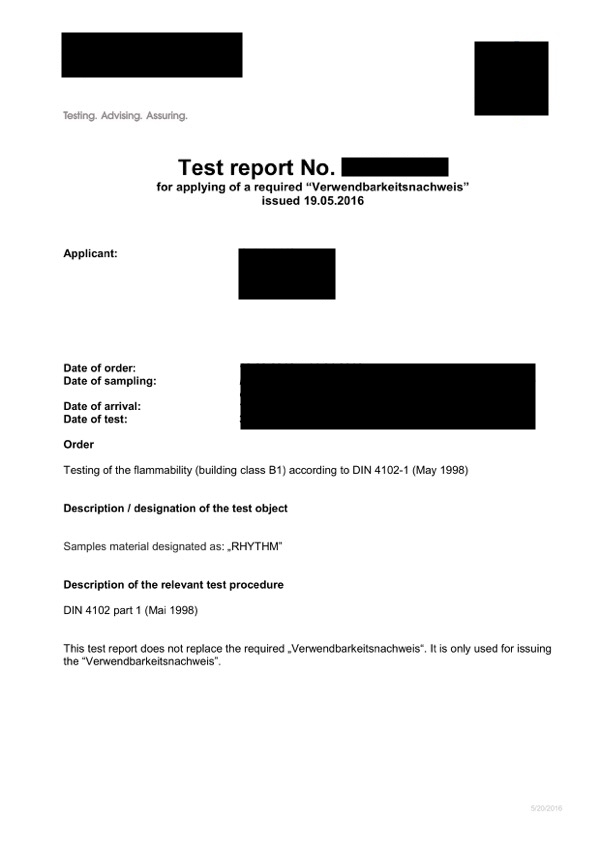

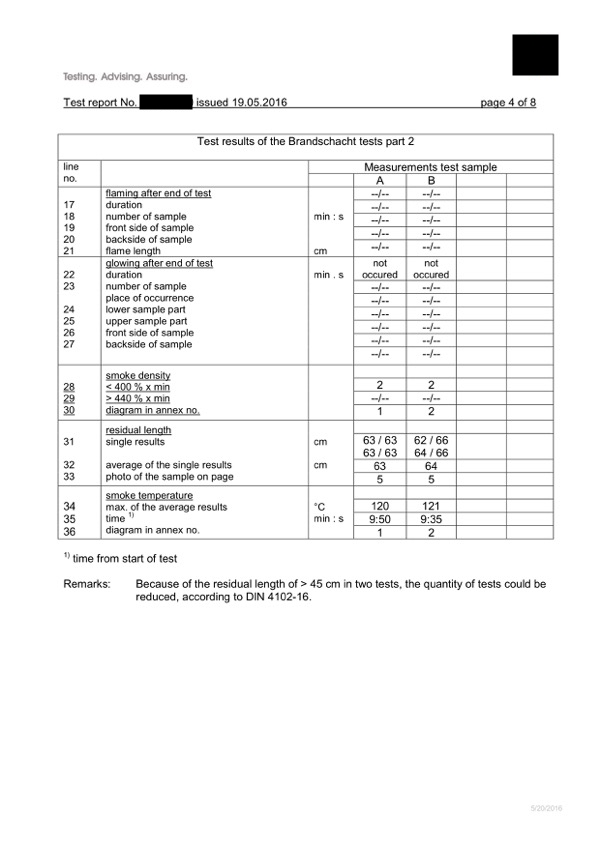

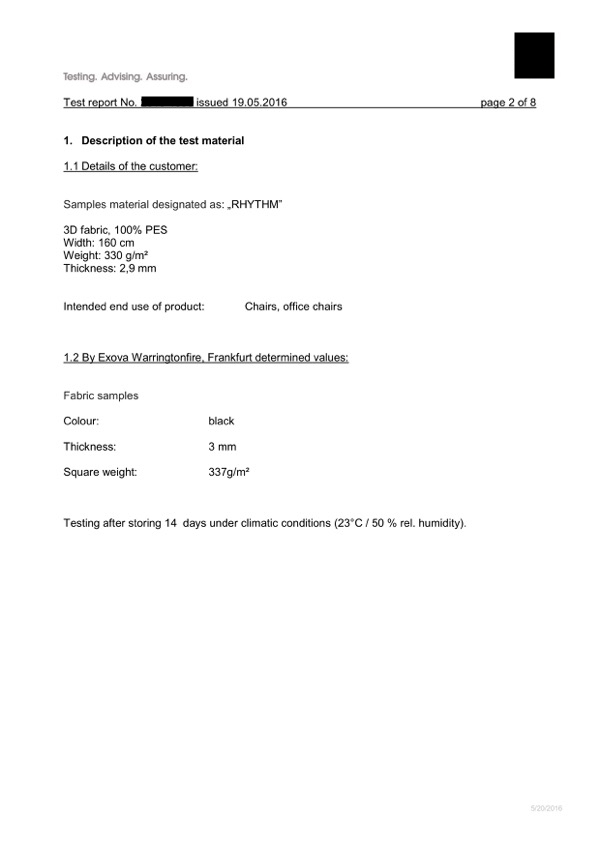

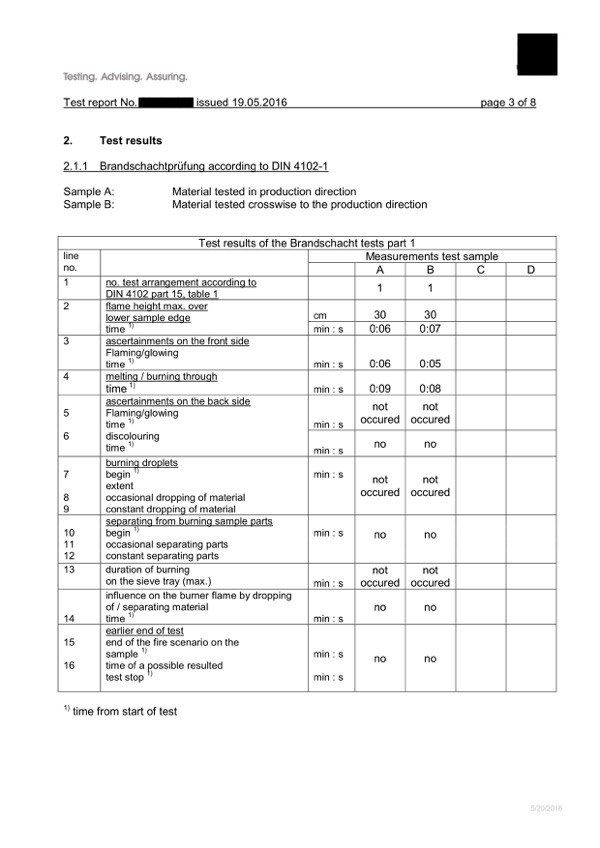

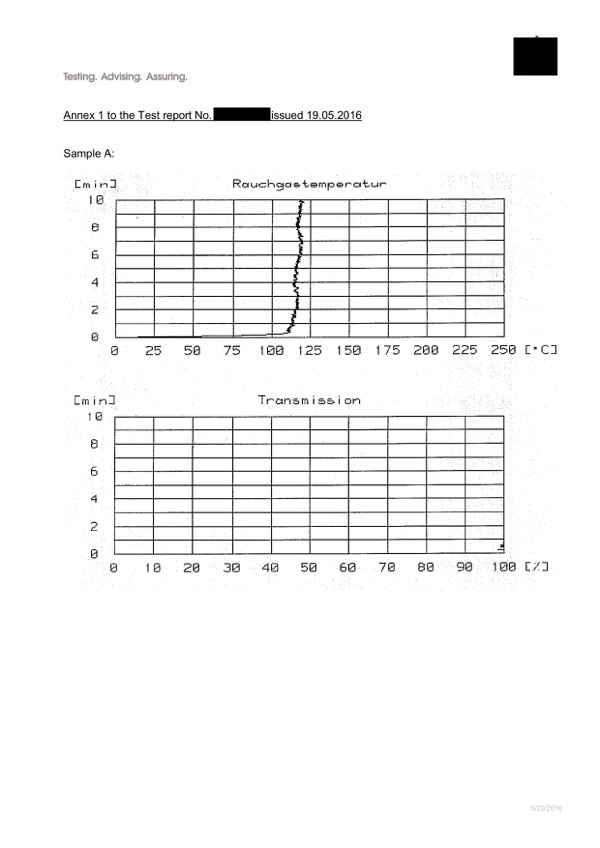

Sample report 样本报告:
Responsive image
Responsive image
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
