Sample name 样品名称: Charpy V 摆钟实验冲击模块

Project info 项目信息

美国ASTM E23测试步骤:

1. 如客户的悬臂摇摆冲击试验器的最大检测功率在289焦耳以下:
测试低能量级NIST标本 SRM2092 (或自测标本2093)和高能量级NIST标本 SRM2096 (或自测标本2097)。您设备测试的步骤和范围是:从较低的能量级逐次开始测试直到您设备最大检测功率的80%。

2. 如客户的悬臂摇摆冲击试验器的最大检测功率在289焦耳和289焦耳以上:
测试低能量级NIST标本 SRM2092 (或自测标本2093)和高能量级NIST标本 SRM2096 (或自测标本2097)。您设备测试的步骤和范围是:从较低的能量级逐次开始测试直到最高能量级的1.5倍。
测试低能量级NIST标本 SRM2092 (或自测标本2093)和高能量级NIST标本 SRM2096 (或自测标本2097)和超高能量级NIST标本 SRM2098。您设备测试的步骤和范围是:从较低的能量级逐次开始测试直到您设备最大检测功率的80%。
高能量级NIST标本 SRM2096 (或自测标本2097)和超高能量级NIST标本 SRM2098。您设备测试的步骤和范围是:从最低能量级的1/2逐次开始测试直到您设备最大检测功率的80%。

测试标本说明:
ASTM23 测试标本分为3种:低能量级13-20焦耳,高能量级88-133焦耳,超高能量级176-244焦耳。低能量级和高能量级标本分为 NIST标本 和 自测标本两种。

低能量级:SRM 2092 (NIST标本)
               SRM 2093 (自测标本)
高能量级:SRM 2096 (NIST标本)
               SRM 2097 (自测标本)
超高能量级:SRM 2098 (NIST标本)

自测标本只表明能量级,不包含任何NIST检测服务咨询.

Combinations for Energy Ranges are as follows:

If a machine has a maximum capacity less than 289 J (213 ft-lbf):
Test the low energy SRM 2092 (or 2093 self-verification) & the high energy SRM 2096 (or 2097 self-verification). The machine will be certified from the lower limit to 80% of maximum capacity.
If a machine has a maximum capacity of 289 J (213 ft-lbf) or more:
Test the low energy SRM 2092 (or 2093 self-verification) & the high energy SRM 2096 (or 2097 self-verification). The machine will be certified from the lower limit to 1.5 X the highest energy level tested.
or
Test the low energy SRM 2092 (or 2093 self-verification), the high energy SRM 2096 (or 2097 self-verification) & the super-high SRM 2098. The machine will be certified from the lower limit to 80% of maximum capacity.
or
Test the high energy SRM 2096 (or 2097 self-verification) & the super-high SRM 2098. The machine will be certified from ½ the lowest energy level tested to 80% of maximum capacity.
Please note: The "Self-Verification" specimens will come with the certified value in order to perform your own verification of your machine to ASTM E23. The Self-Verification specimens shall not to be returned to lab and do not include any of lab services (before or after testing) or help and will not come with a NIST Verification Letter and/or sticker.

Sample info样品描述:  V形缺口

Lead time 购买周期:  由于美国直接快递过来 常规 Regular service 20 working days

Others 其他信息:
1. 每套冲击标样都带有证书
2. 涉及标准 ISO/DIS12736

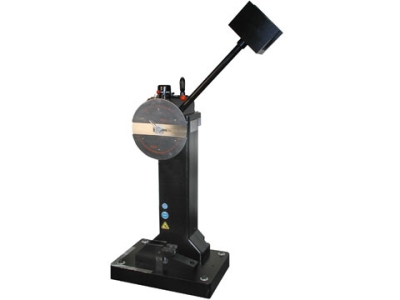

Sample for reference 参考图片:
Responsive image

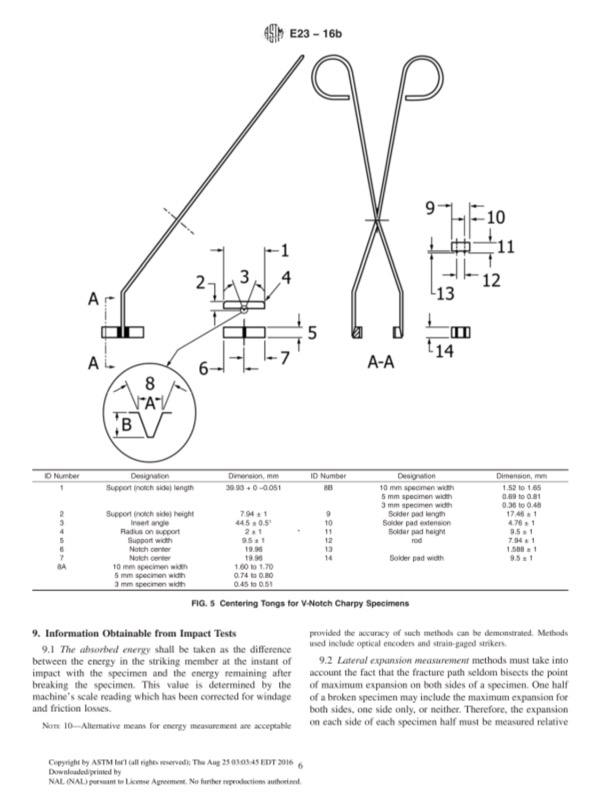

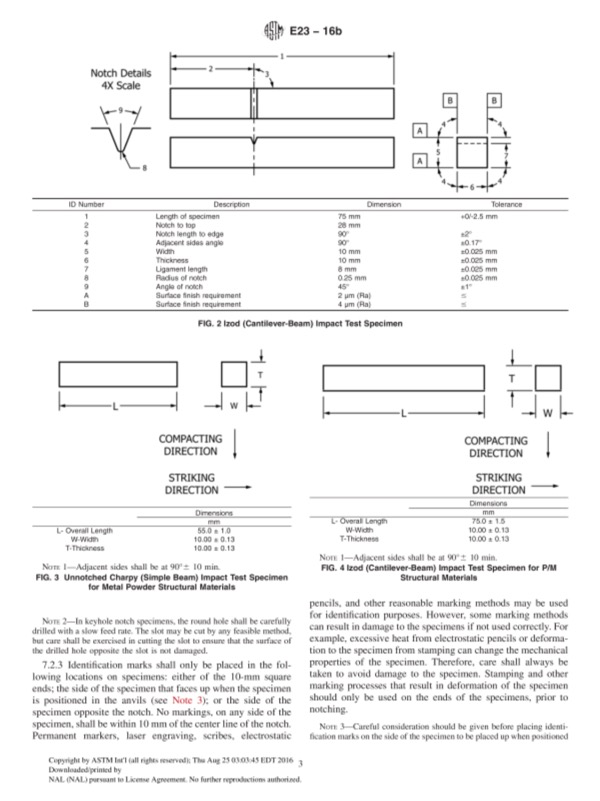

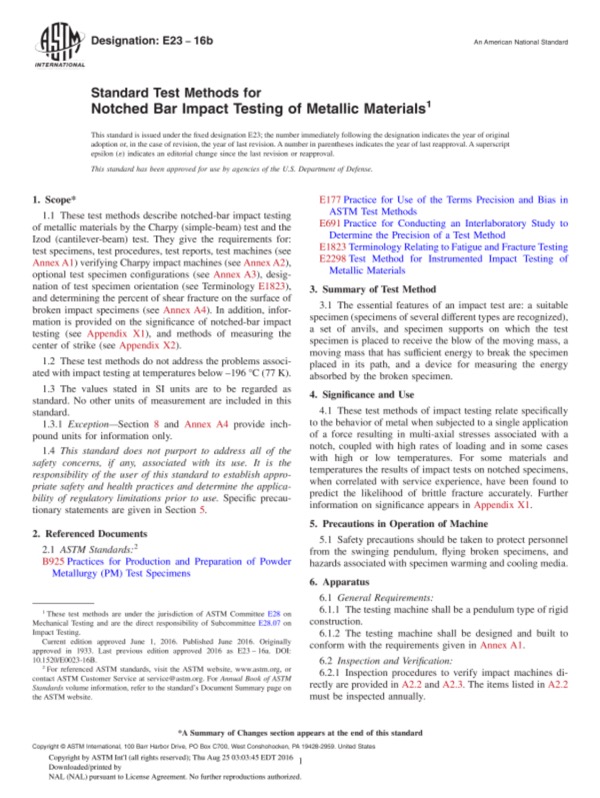

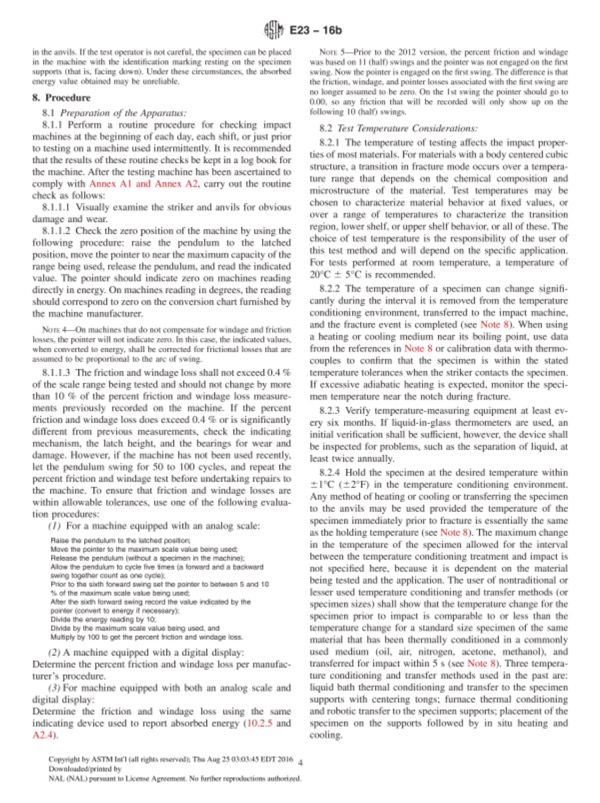

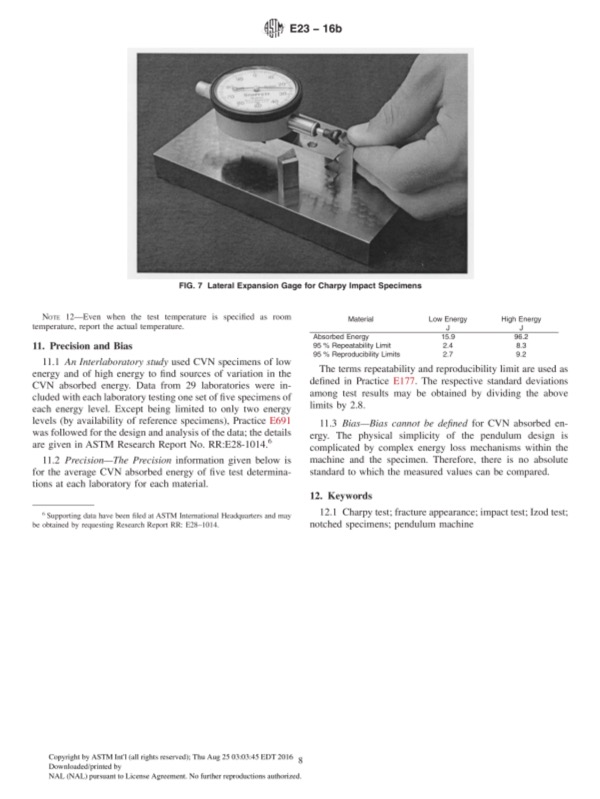

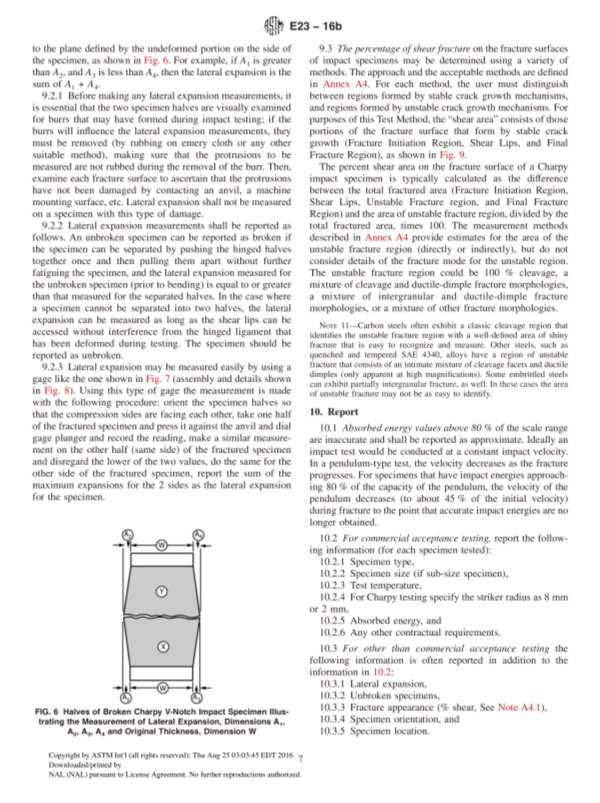

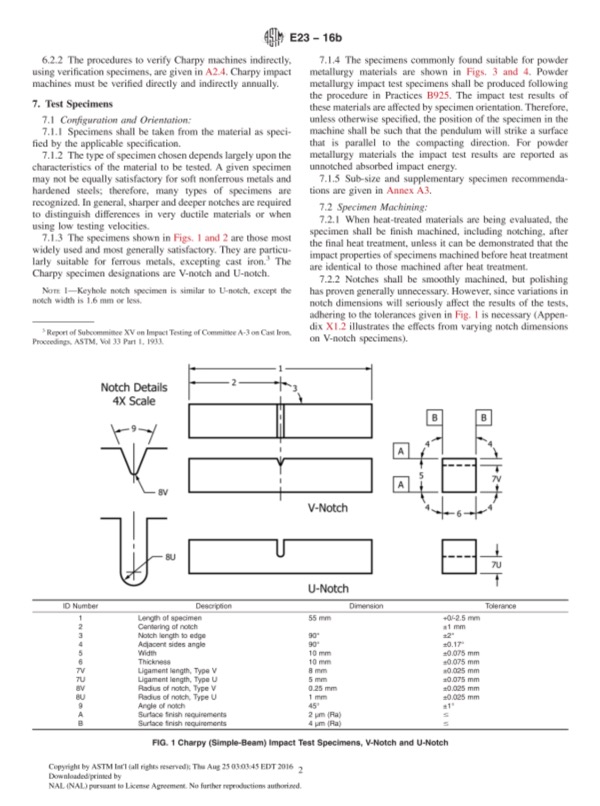

Sample Report 报告样本:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive imageResponsive image
