ANSI NEMA LD 3返回 Back

ANSI NEMA LD 3 High-Pressure Decorative Laminates
高压装饰层压板
Clause Test Requirement Test Standard TAT(working days) Sample requirement(mm)
条款 测试要求 测试标准 测试周期(工作日) 样品要求(毫米)
1 外观 Section 3.1  5 整片成品
Appearance
2 表面装饰层 Section 3.2/ ASTM D 523 5 最小150mm×150mm,
Surface Finish 如可能,在整张成品的四个角和中心取样
3 耐光色牢度 Section 3.3 7 标准尺寸:150mm×70mm,
Light Resistance  5 pcs
4 易清洁性 Section 3.4 7 100mm×400mm, 2 pcs
Cleanability/Stain Resistance
5 耐沸水 Section 3.5 7 200mm×200mm, 3 pcs
Boiling Water Resistance
6 耐高温 Section 3.6 7 200mm×200mm, 3 pcs
High Temperature Resistance
7 耐划伤 Section 3.7.3 7 100mm×100mm, 3 pcs
厚度<20mm
Scratch resistance
8 耐落球冲击 Section 3.8 7 300mm×300mm, 10pcs
Ball Impact Resistance
9 耐落镖冲击 Section 3.9 7 200mm×200mm, 3 pcs
Dart Impact Resistance
10 尺寸变化 Section 3.11 12 120mm×120mm, 12 pcs
Dimensional Change
11 室温尺寸变化 Section 3.12 12 120mm×120mm, 6 pcs
Room Temperature Dimensional Change
12 耐磨测试 Section 3.13 7 103mm×103mm或直径103mm,
Wear Resistance 5 pcs

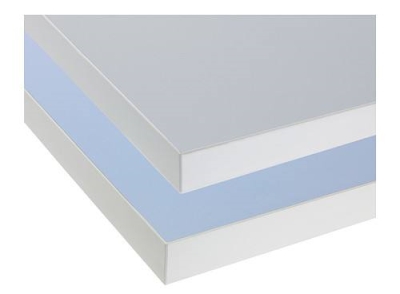

Sample for reference 参考图片:
Responsive image

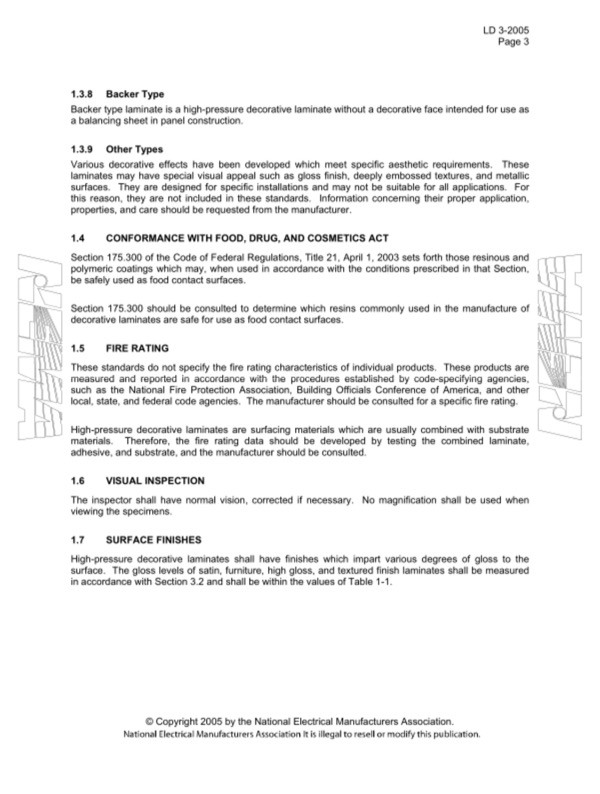

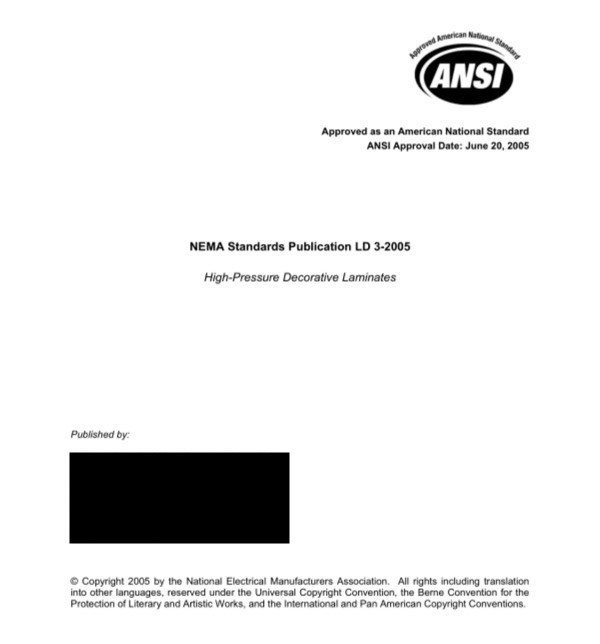

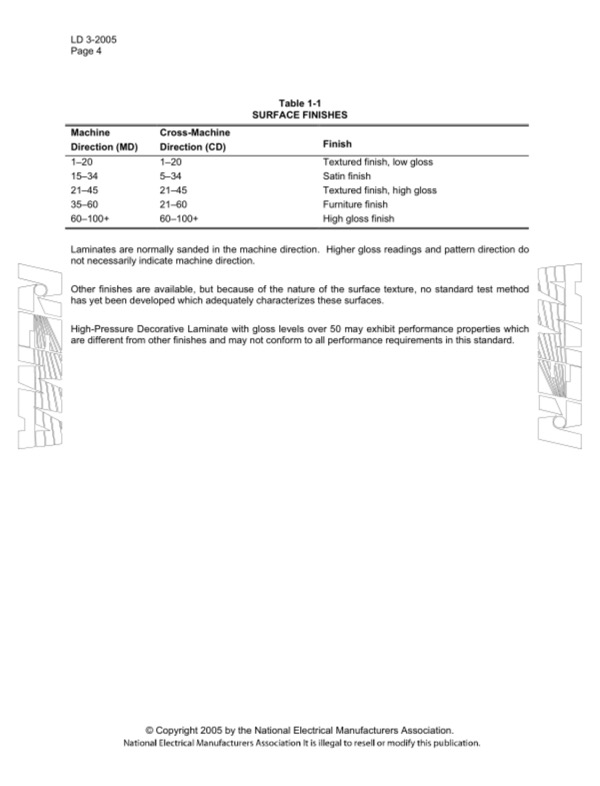

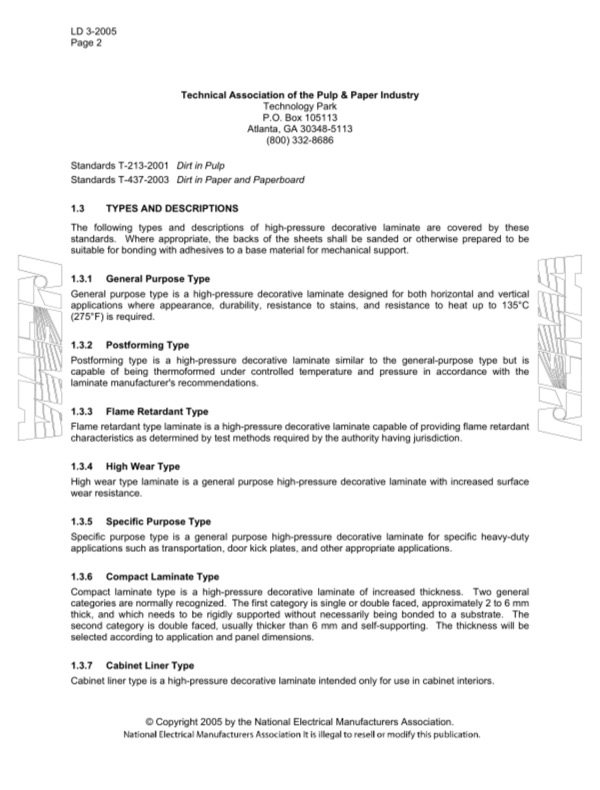

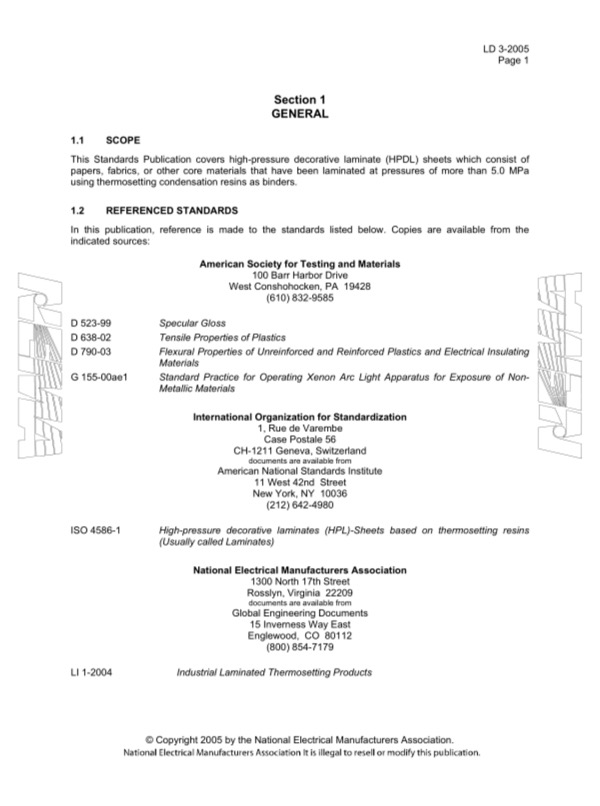

Sample report 样本报告:
Responsive imageResponsive imageResponsive imageResponsive imageResponsive image
